Integrated steel industry solutions
Rolling mill · meltshop · material handling · revamping · engineering
One line. One point of contact.
A steel plant is one process, from the furnace to the finishing area. BEISCO can address its engineering, equipment and technology needs as a whole, through one point of contact.
Manufacturer · BEISCO is distributor and solution partner
Steel plant solutions
- Rolling mill equipment
- Meltshop equipment
- Material handling
- Plant revamping
- Industrial engineering services
| EAF | 08 |
|---|---|
| Ladle | 08 |
| Reheating furnace | 08 |
| Rolling mill stands | 01 · 03 · 04 |
| Cooling bed | 08 |
| Finishing area | 05 |
| Across the whole line | 06 Hydraulics · 07 Automation |
Send us the line layout and what has to change. We will tell you where to start.
Send your enquiryMeltshop
Refractories
Meltshop · EAF and steel ladle linings
HOFENG makes refractories and works as a refractory general contractor. BEISCO is HOFENG's distributor and solution partner in Türkiye and the surrounding region.
| Established | 1998 |
|---|---|
| Countries supplied | 20+ |
| Shaped refractories | 180,000 t / year |
| Unshaped refractories | 80,000 t / year |
| Scope | R&D, design, production, masonry, maintenance, demolition |
Every heat starts with the lining.
The lining decides how many heats a furnace delivers before the next reline.

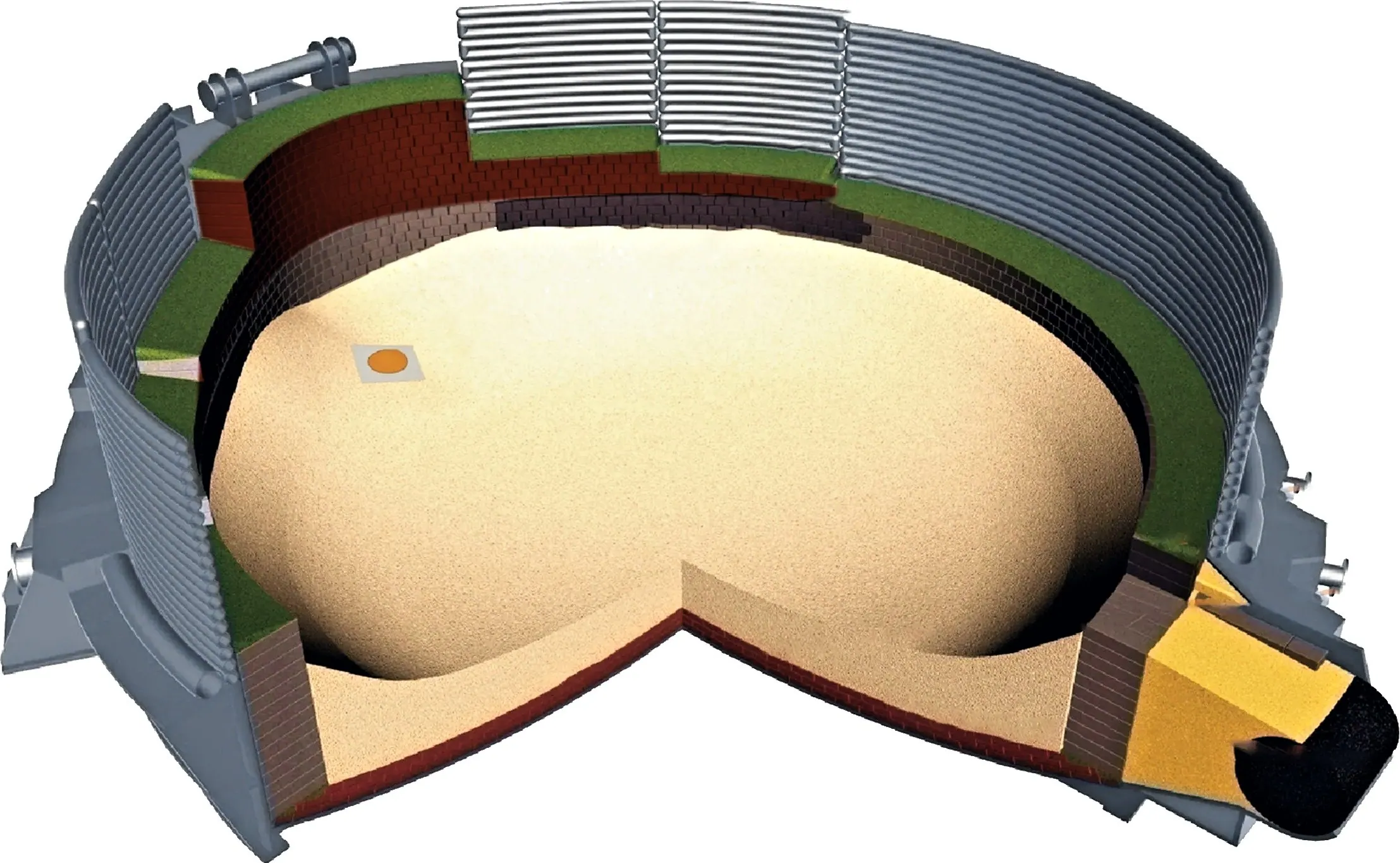

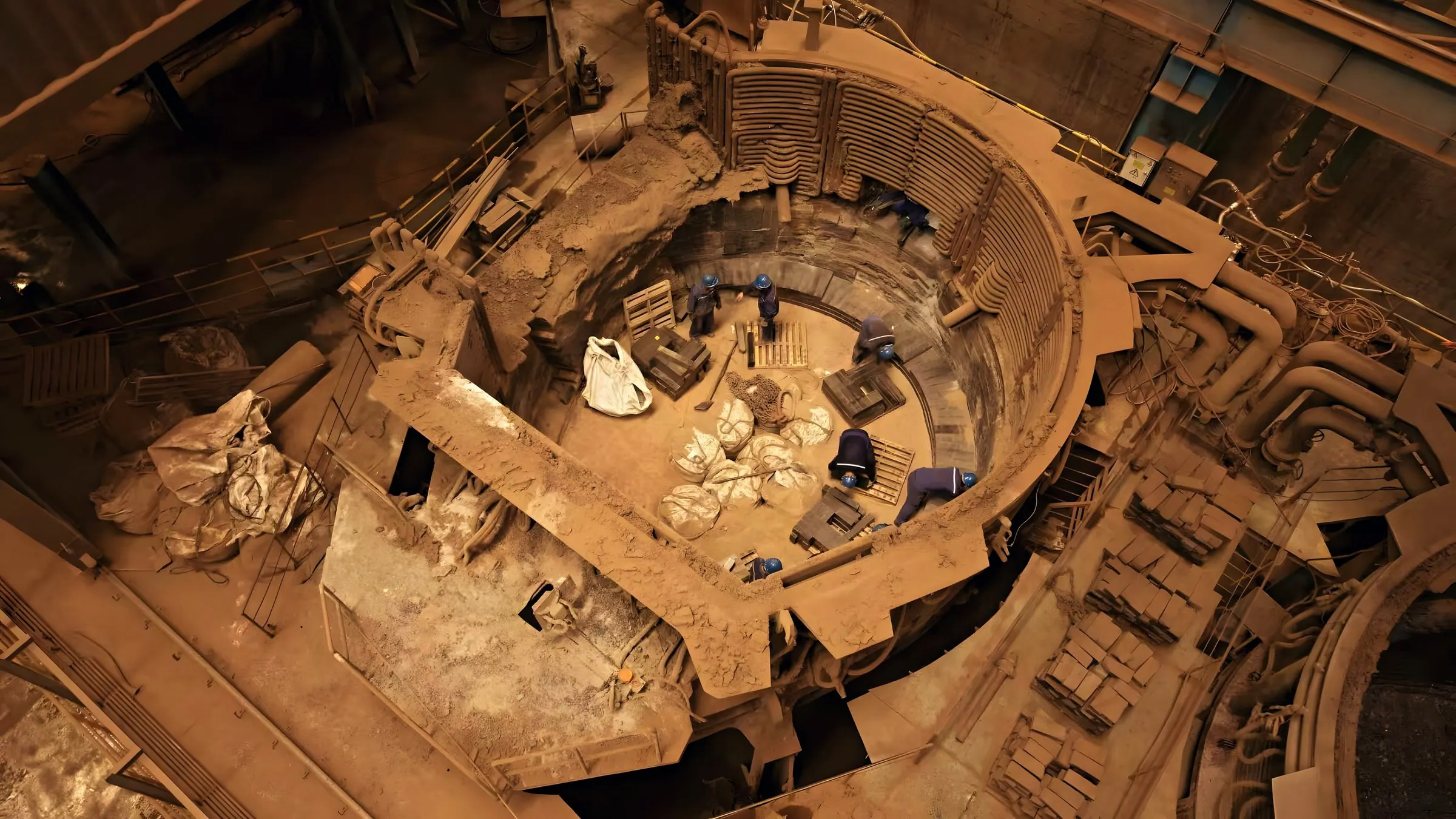

HOFENG covers the whole refractory job, from design and production to masonry, maintenance and demolition. For an electric arc furnace, that means a lining specified zone by zone (slag line, walls, EBT taphole, bottom, door), with each grade chosen for the wear that zone sees. In Türkiye and the region, mills can work with HOFENG through BEISCO.
| Zone | Grades |
|---|---|

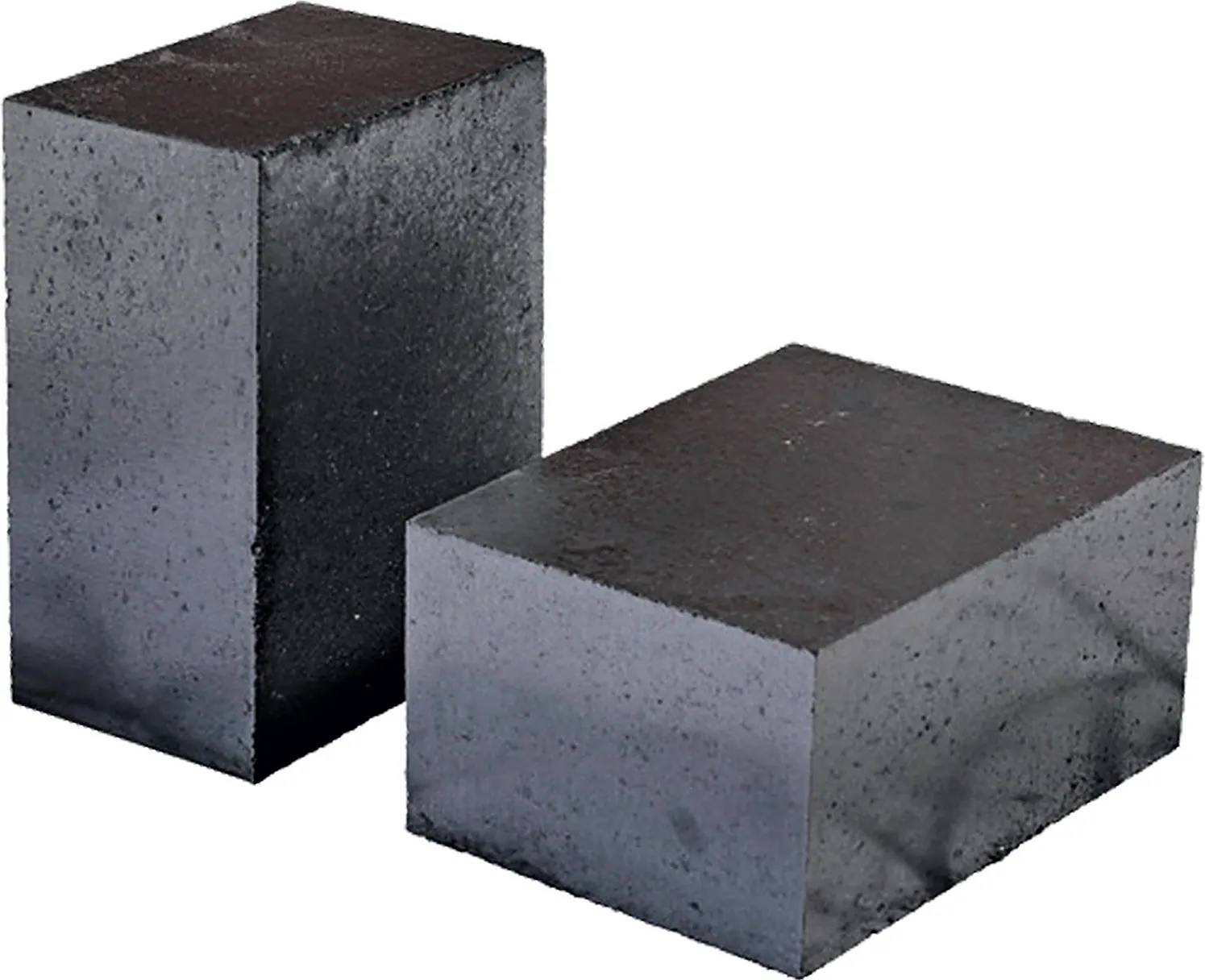

| Slag line | MT-14A, MT-16A |
| Wall, upper part | MT-14B, MT-16B |

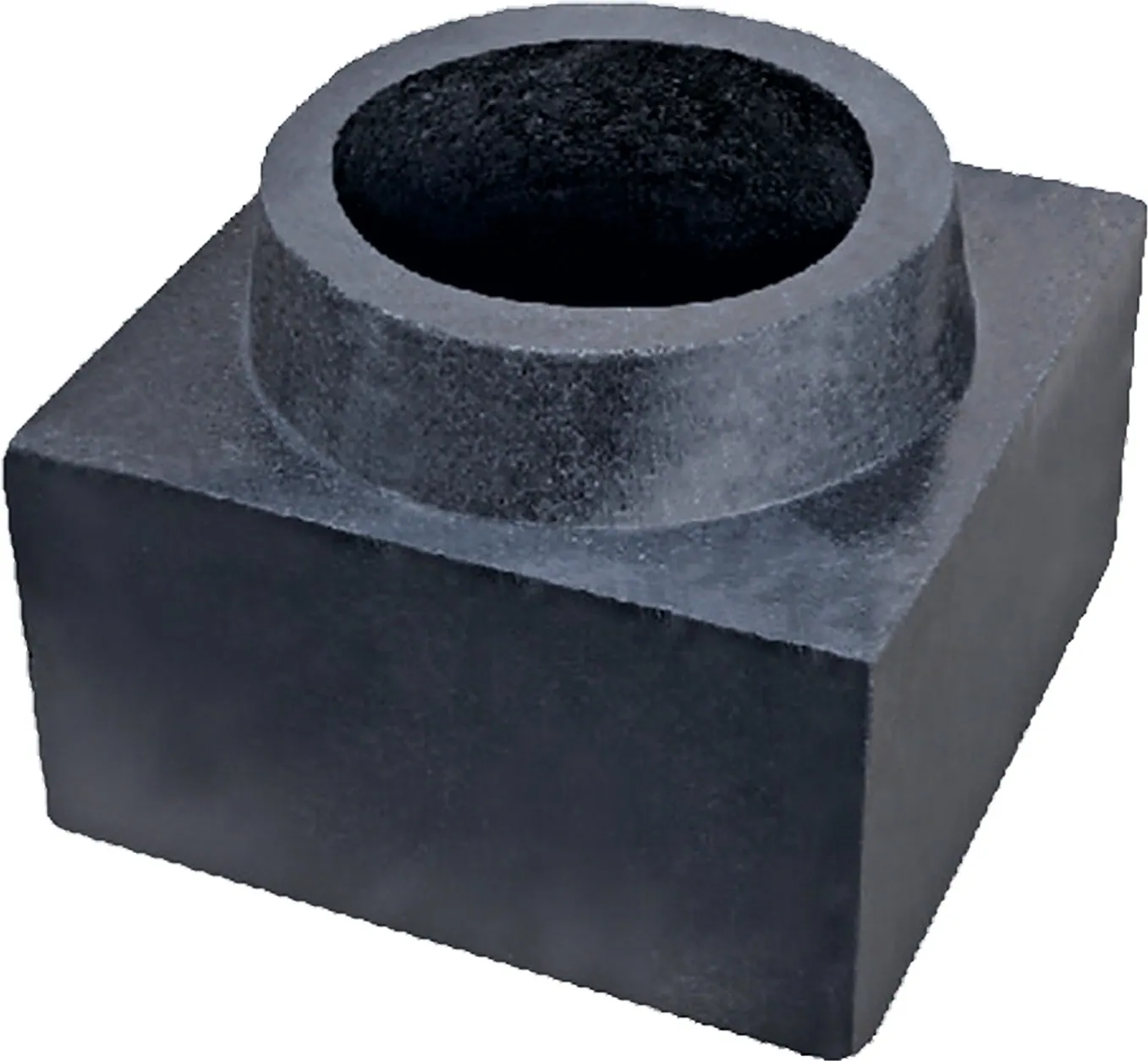

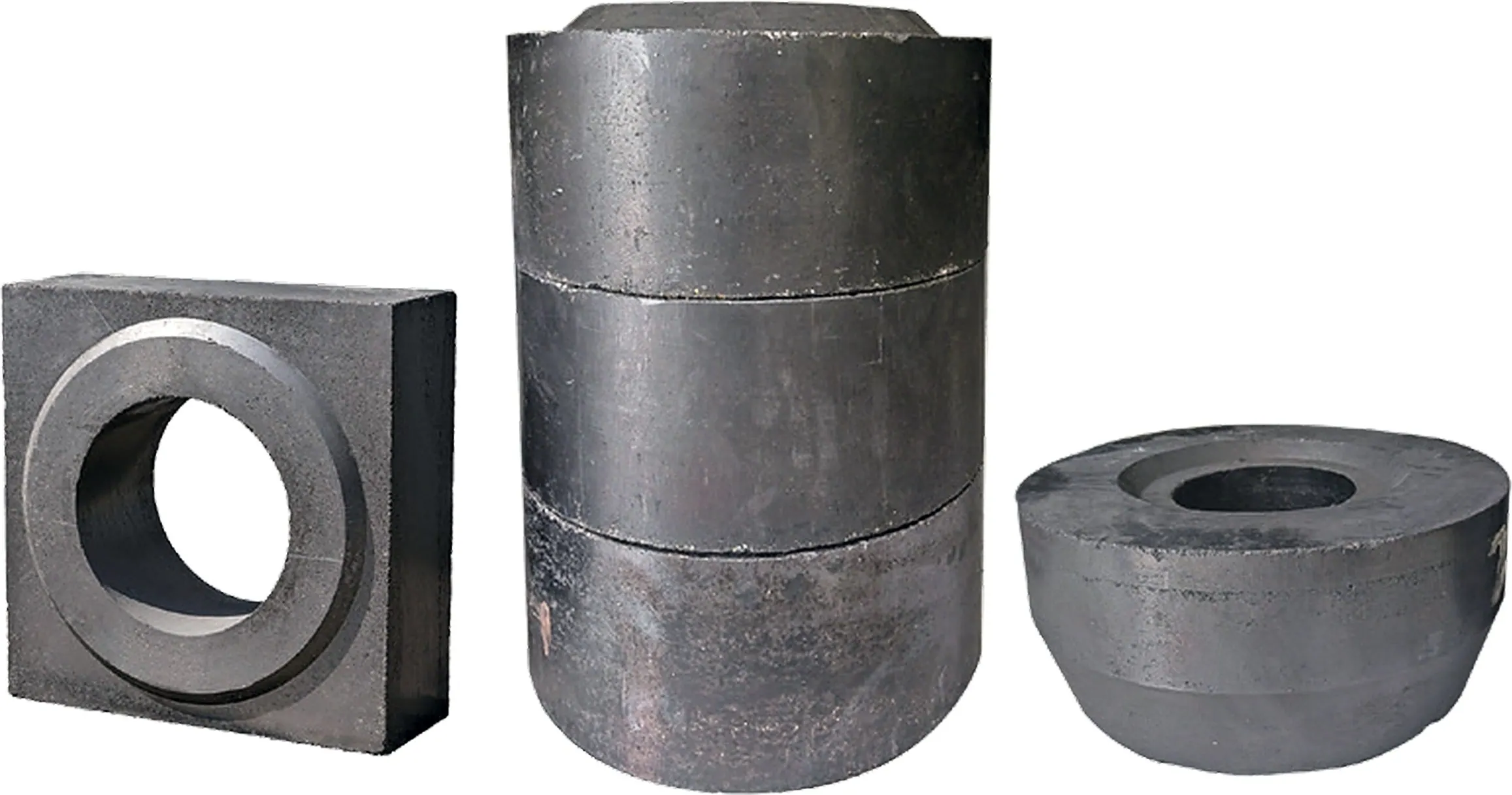

| Eccentric area, EBT taphole | MT-16A |
| EBT tapping filler | Magnesia-based |

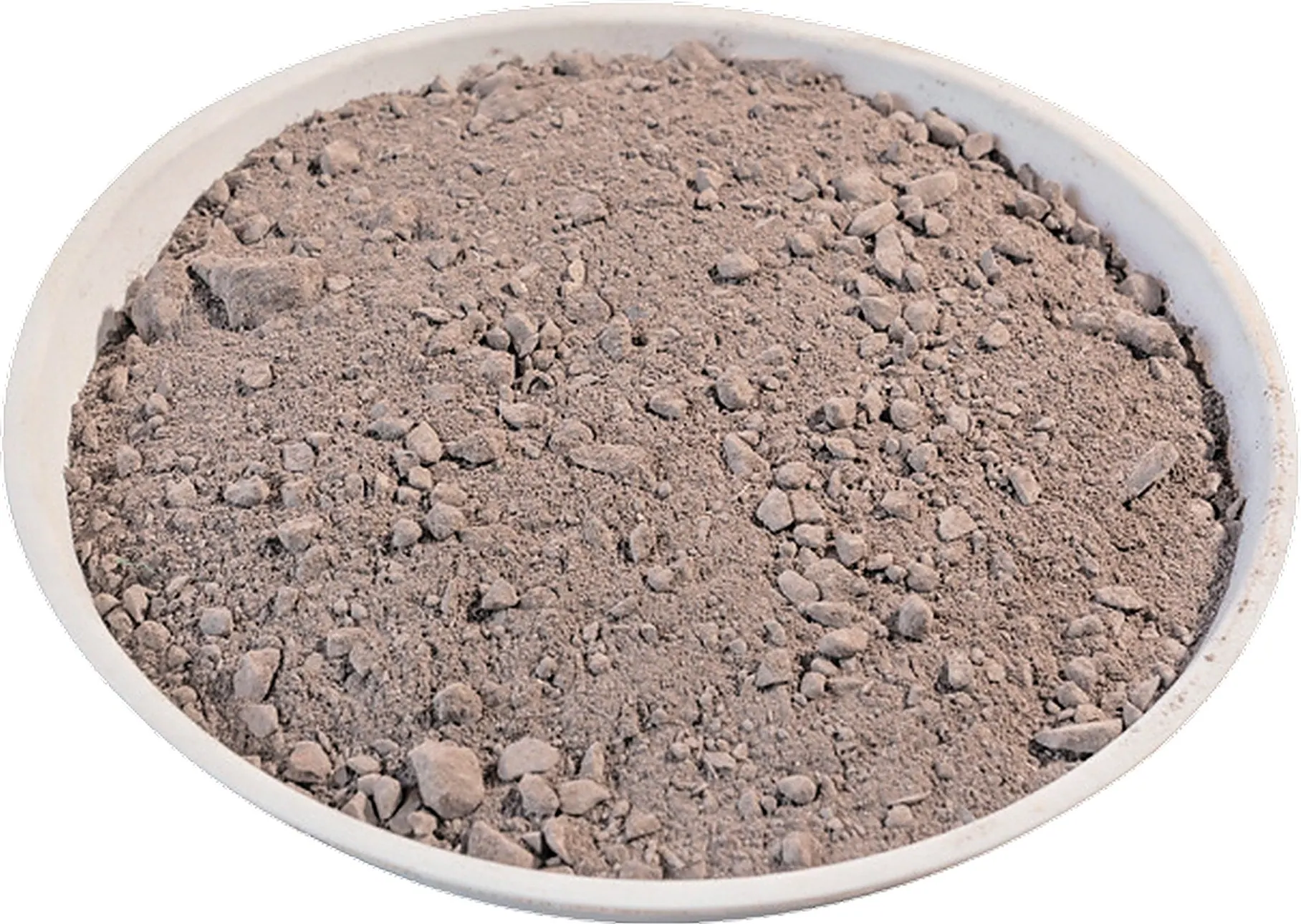

| Bottom ramming | MC80, MC85 |
| Wall, lower part / door jamb | MT-14A, MT-16A |
| Furnace door repair | MgO-C |
| Safety lining | MgO-based brick |
| Insulation | Nano ceramic insulation board |

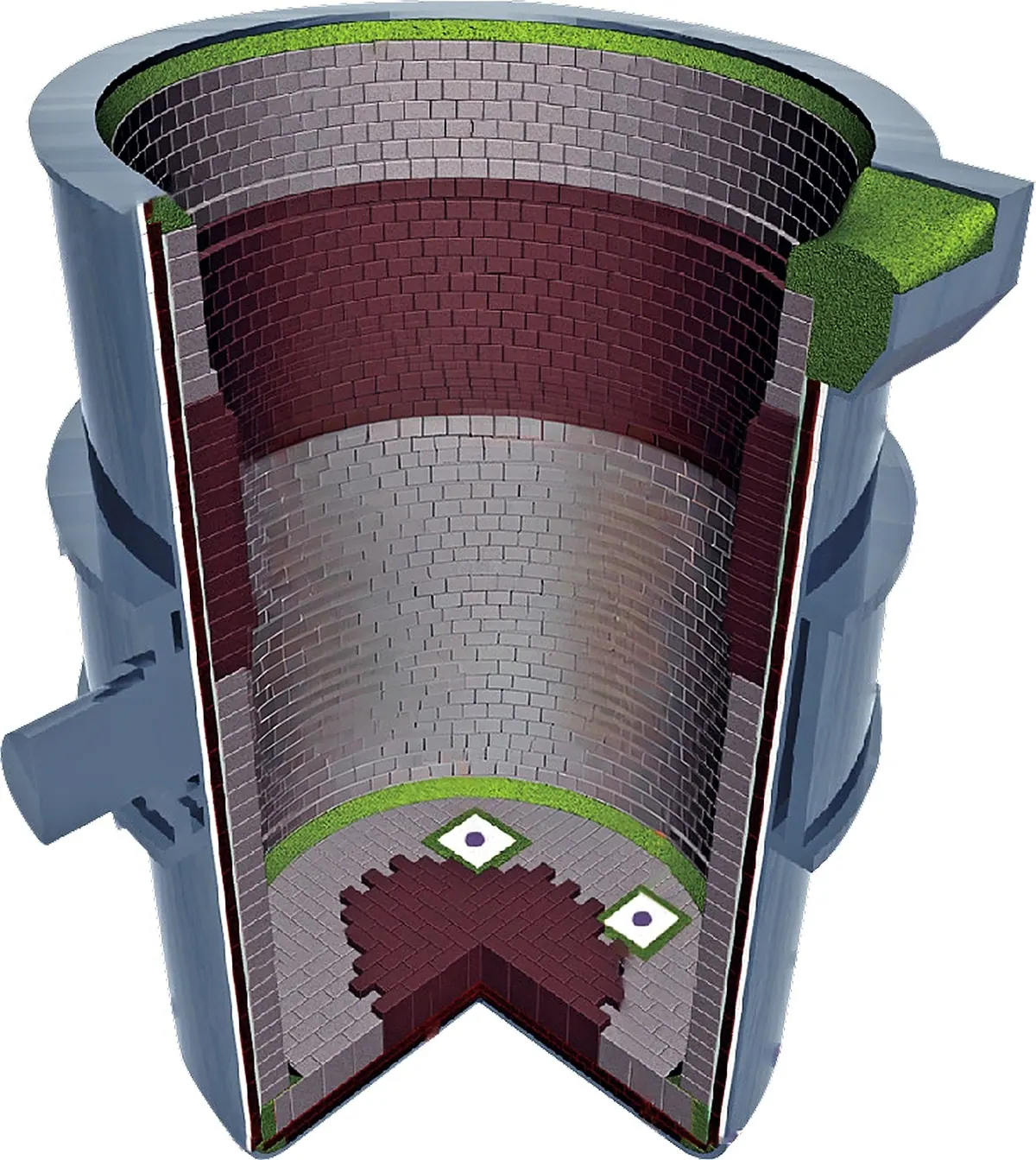

Steel ladle lining

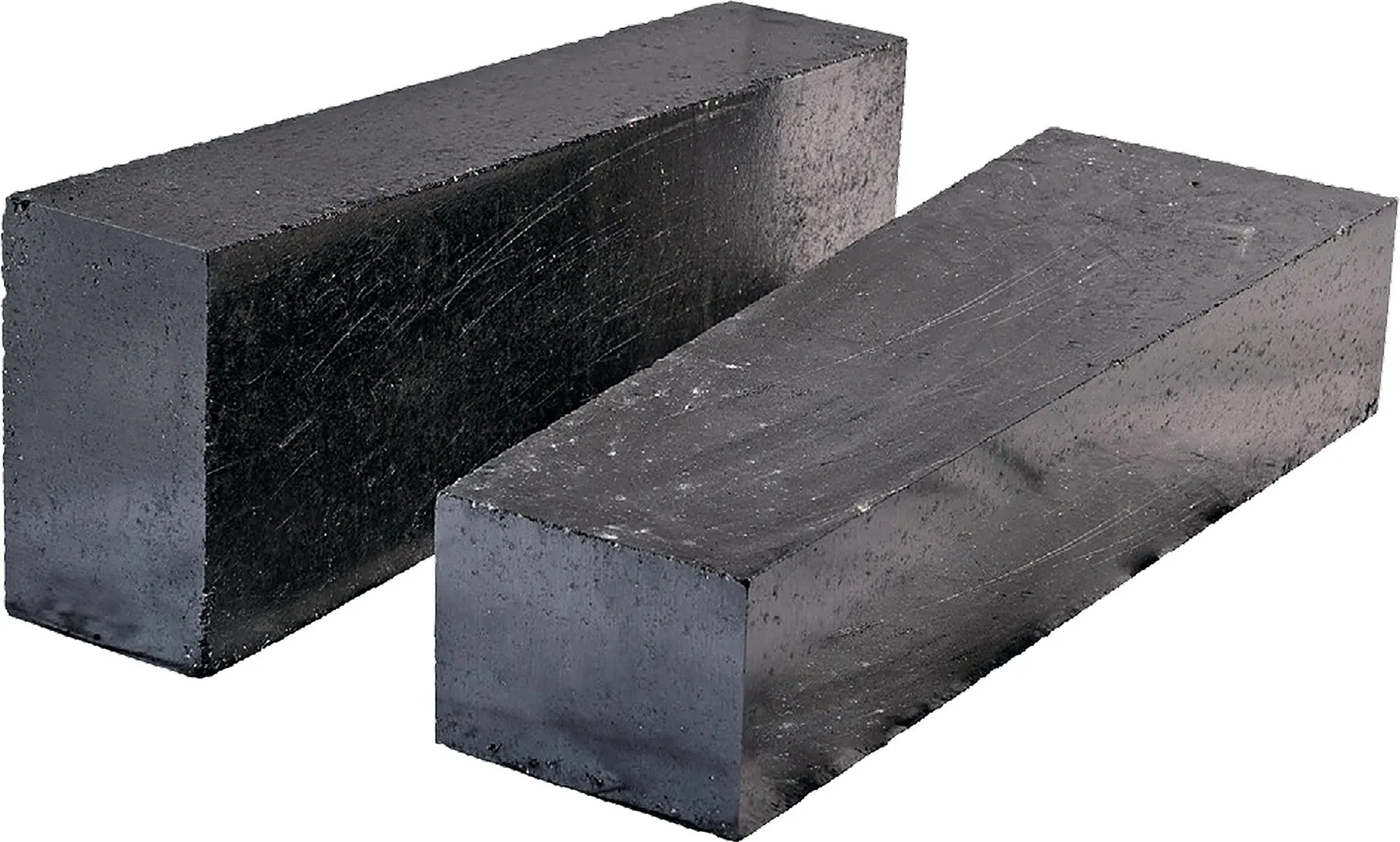

MgO-C and AMC/MAC · zones and grades
What the furnace makes, the ladle must hold.
Steel ladle linings in MgO-C and AMC/MAC, zoned from the mouth to the bottom.
| Zone | Grades |
|---|---|
| Mouth | High-alumina castable / plastic mix |
| Slag line | MT-12A, MT-14A, MT-16A |
| Impact zone | MLT-80, MLT-75, LMT-70 |
| Freeboard | MT-8B – MT-14B, MLT-75, LMT-65 |
| Sidewall | MLT-85/80/75, LMT-70/65, MT-12A/14A |
| Bottom, non-impact area | MT-10B, MLT-75, LMT-65 |
| Safety lining | High-alumina castable |
| Insulation lining | Al-silicate / nano ceramic fibreboard |
Send us the furnace or ladle capacity, the current lining and its campaign life. We will work out a zone-by-zone lining proposal with HOFENG.
