Roll shop technologies
Laser cladding · laser alloying · roll remanufacturing · service centre
Worn is not finished.
In Izmir, BEISCO gives worn rolls a new wear-resistant surface by laser cladding and alloying and sends them back to the mill. BEISCO is also RHCNC's service centre for laser and roll-lathe equipment in Türkiye and the region.
RHCNC laser and roll-lathe equipment: BEISCO is the service centre
A roll does not wear out all at once. It wears in the groove, at the neck, on the surfaces that meet the steel. The rest is still there: the steel, the casting or forging, the heat treatment. The mill has already paid for all of it. Laser technology rebuilds the part that wore. This is the work at the centre of BERUI. This chapter follows it from the worn groove to the rebuilt roll, and to the service behind the machines.
Laser surface strengthening
Alloying · cladding · hardening
A new surface, built with light.
A high-energy laser beam scans the surface. Heating and cooling happen so fast that the surface either changes its structure or takes on new material.
Three processes

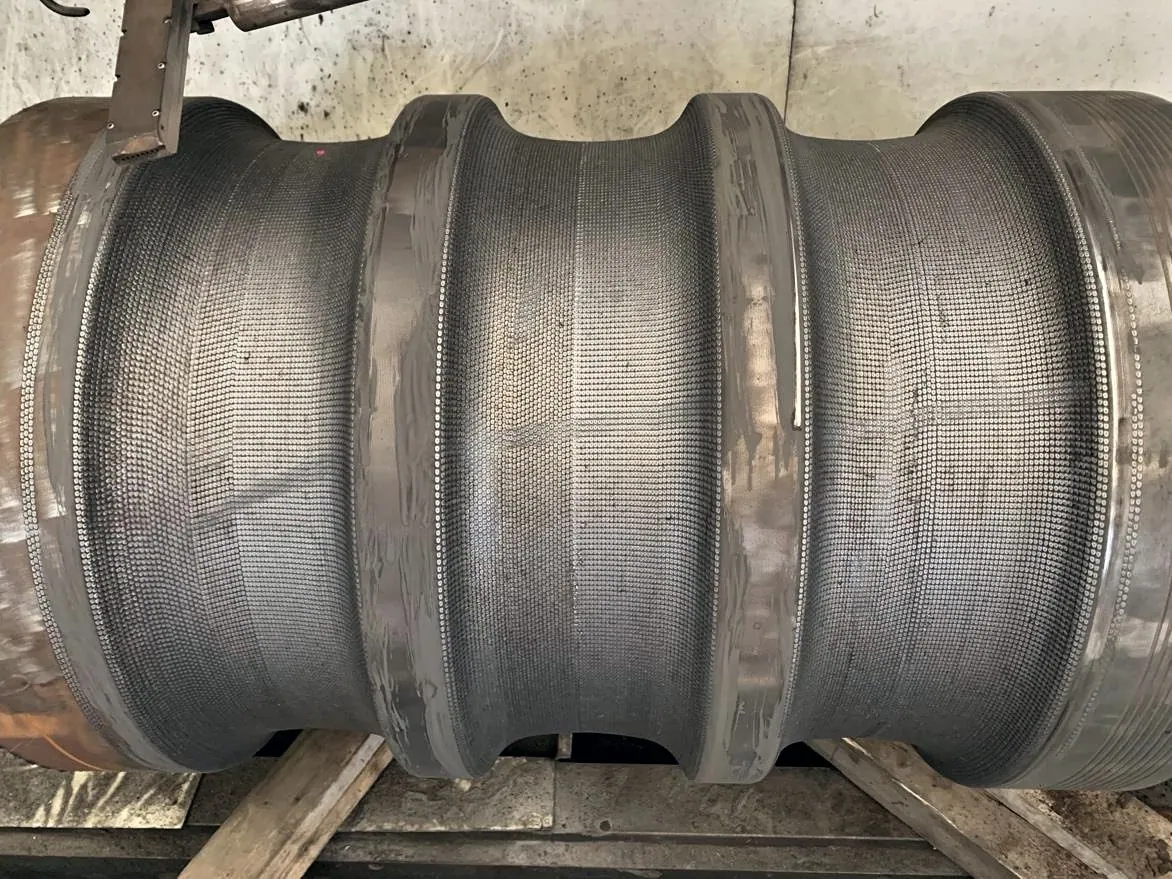

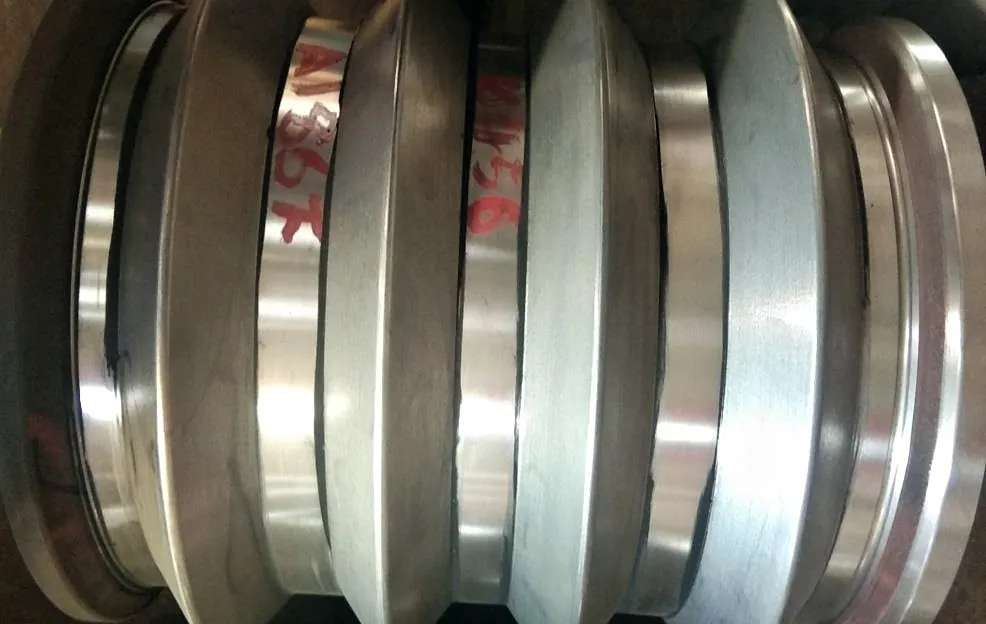

- Laser alloyingAlloying elements are fused into the roll surface, forming an alloy layer of approx. 1.5–2.0 mm of ultra-fine martensite and dispersed carbides. Groove dimensions stay unchanged and no further machining is needed. Typical parts: roll grooves in roughing, intermediate and finishing stands.

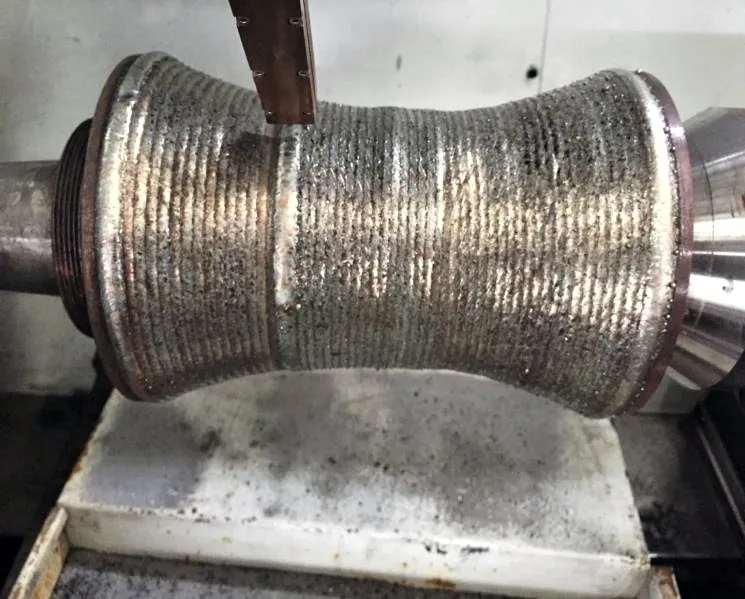

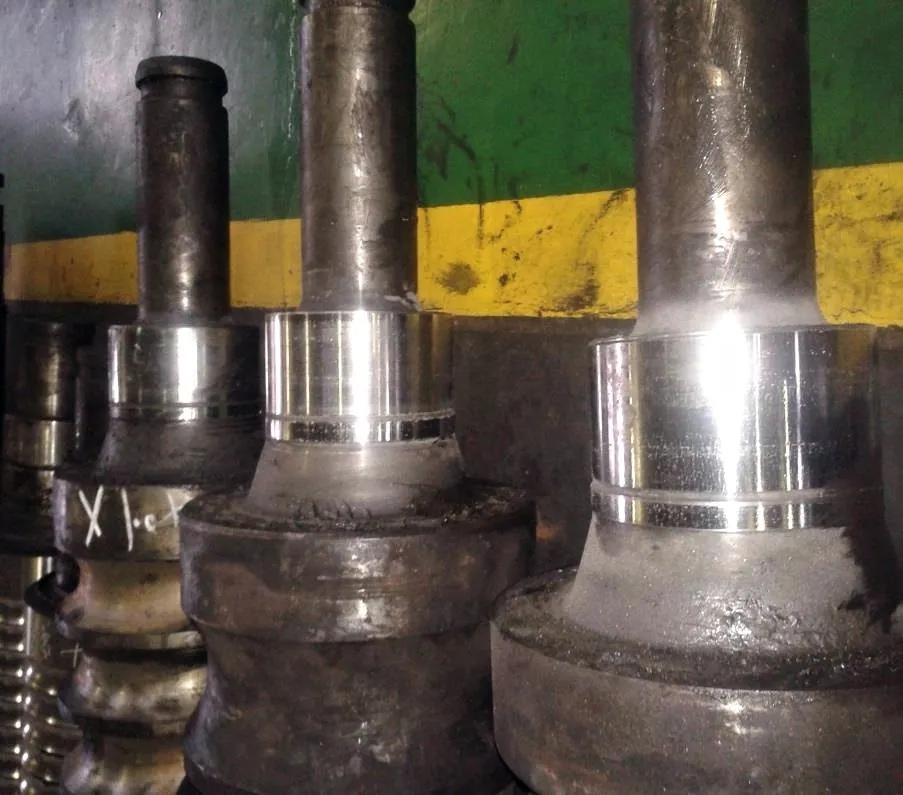

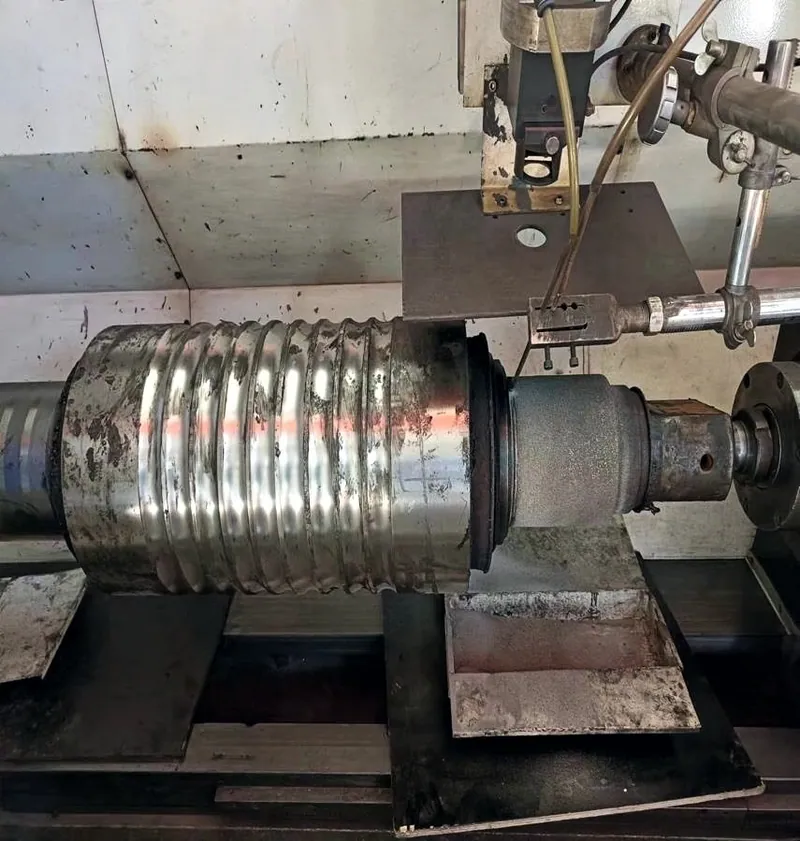

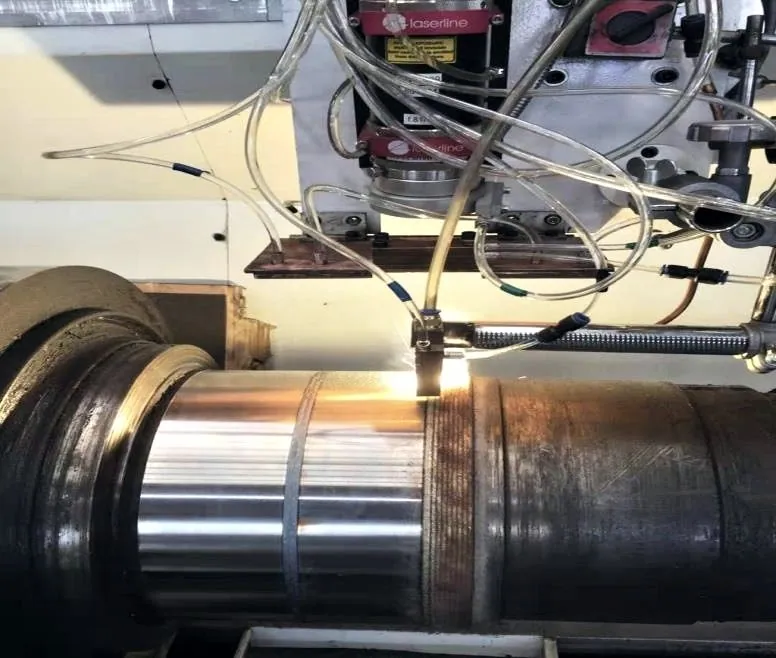

- Laser claddingSelf-fluxing alloy powder is melted onto the surface and bonds metallurgically, with a very low dilution rate. Used to rebuild roll necks, gear-shaft bearing journals and guide rollers. Typical parts: roll necks · bearing journals · guide rollers.
- Laser hardeningAlso known as laser quenching. The laser heats the surface past its transformation point, and the cold mass of the part quenches it to martensite. The composition stays the same; deformation is minimal. Typical parts: packing-machine reels · driving and driven wheels.
Why laser
- Little distortionHigh power density and a very short interaction time keep the heat-affected zone and the part's deformation minimal.
- Local treatmentHeat goes only where it is needed, so complex profiles and key areas can be treated, under automated control.
- Harder surfaceA harder surface than conventional heat treatment gives, after laser quenching or alloying.
- A wear layer on a lower-cost baseA wear- and corrosion-resistant alloy layer is built on a lower-cost substrate, saving precious alloy material.
Ask us which process fits your rolls and parts.
Send your enquiryThe Izmir workshop
Laser roll remanufacturing in Izmir
Worn roll in. Harder-wearing roll out.
BEISCO remanufactures worn rolls and parts in Izmir, with RHCNC as technology partner.
A worn roll is not scrap. It is steel, casting or forging, and heat treatment the mill has already paid for. BEISCO collects worn rolls, mainly from roughing and intermediate stands, repairs them in its Izmir workshop and builds a new wear-resistant surface with laser cladding and alloying from metal powder.
For the mill, that can mean fewer new rolls to buy. What it means for your rolls depends on roll material, pass design and rolling practice.
Six steps
- 01CollectWorn rolls and parts come in from the mill.
- 02InspectWear, cracks and groove condition are measured.
- 03PrepareDamaged areas are machined back to sound metal.
- 04Clad & alloyA wear-resistant layer is built up with laser and metal powder.
- 05MachineAfter cladding, profile and grooves are finished on CNC roll lathes.
- 06ReturnThe roll goes back to the stand.
| Scope | Roughing and intermediate stand rolls · shafts · rollers · mining drill parts |
|---|---|
| Process | Laser cladding and alloying with metal powder |
| Location | Izmir, Türkiye |
| Technology partner | RHCNC |
Send us the roll drawing and its campaign data. We will tell you what can be recovered.
Send your enquiryWhat we rebuild
What we remanufacture: rolls, shafts, rollers
Mainly rolls. Not only rolls.
The Izmir workshop concentrates on rolls from roughing and intermediate stands. The same laser process restores shafts, rollers and mining drill parts.

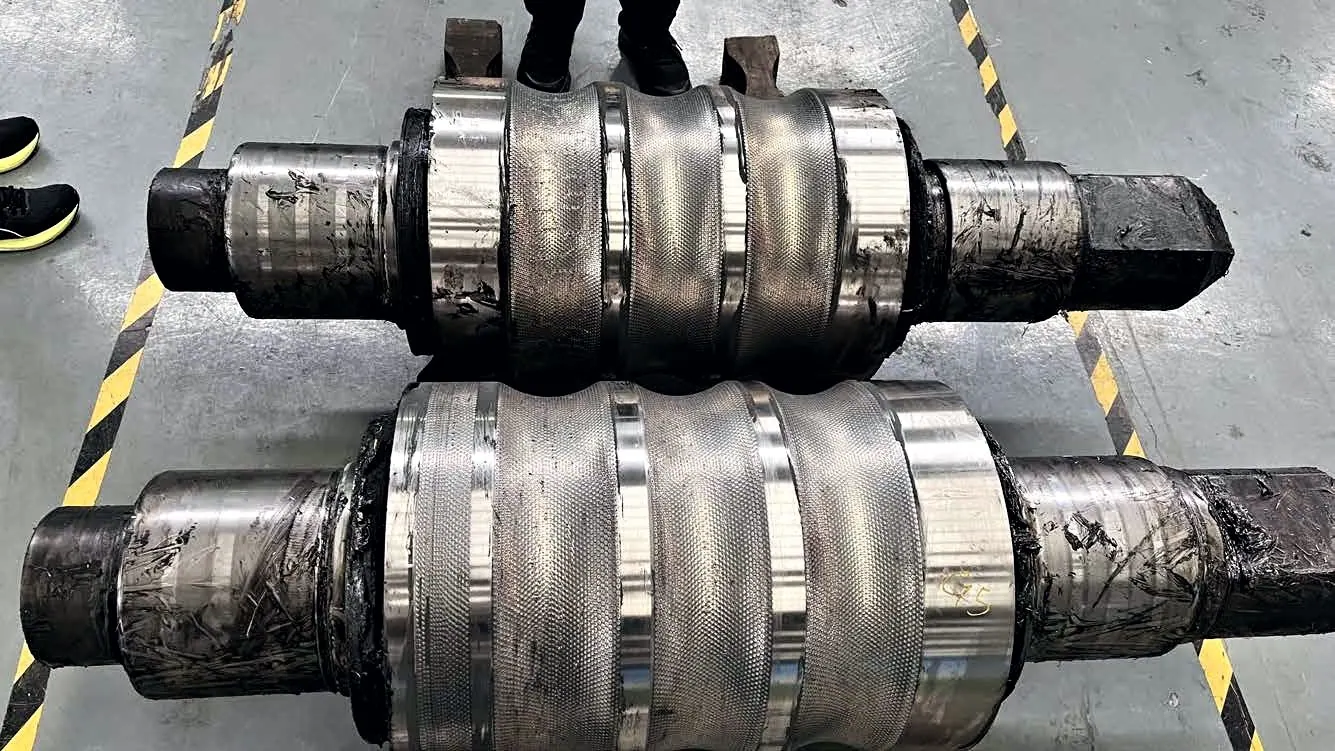

- Roughing and intermediate stand rollsWorn rolls are collected from the mill, rebuilt in Izmir and returned to the stand: the core of the workshop's work.

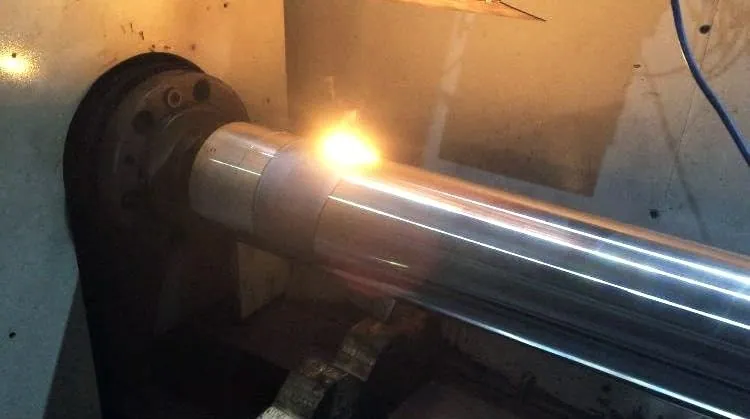

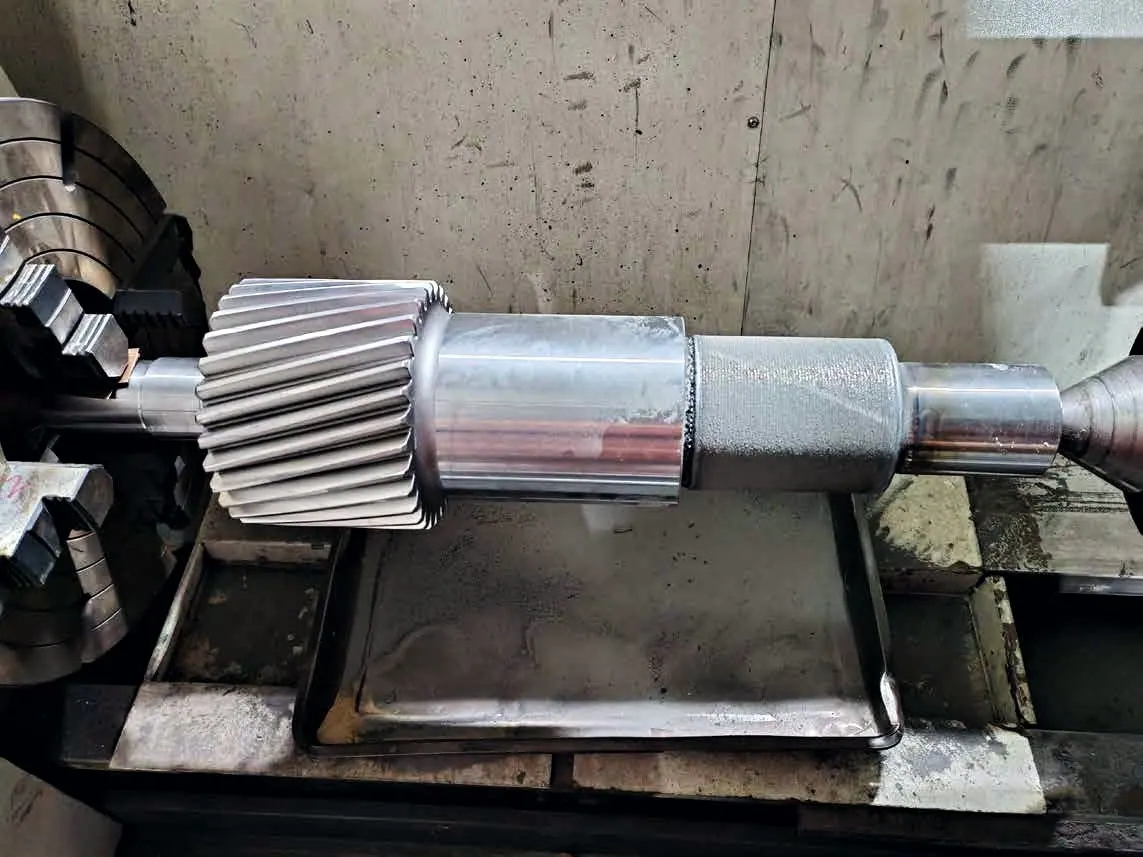

- ShaftsWorn surfaces rebuilt with a laser-clad layer and machined back to size.
- RollersWorn running surfaces rebuilt the same way.
- Mining drill partsThe same laser process, used outside the steel plant on wear parts of mining drills.
Send us the part drawing, its material and where it runs. We will tell you whether it can be rebuilt.
Send your enquiryService and warranty
RHCNC machines: two-year warranty, service in Izmir.

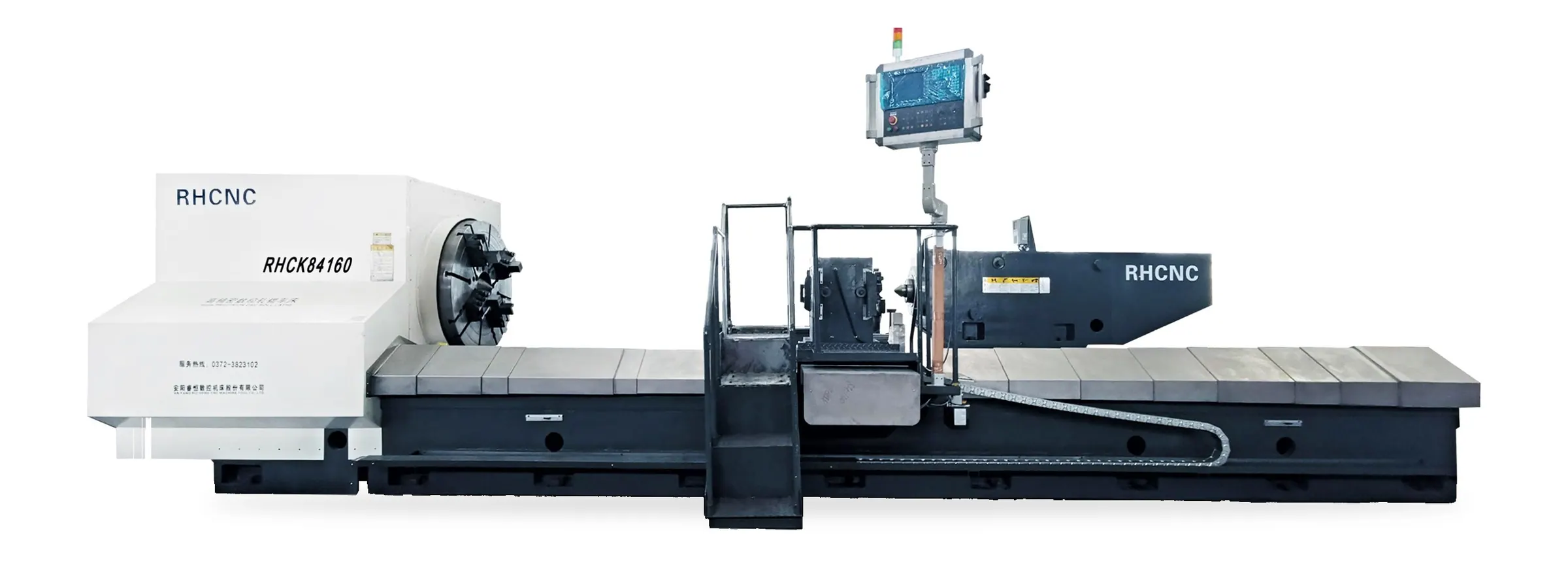

RHCNC gives each machine a two-year warranty covering the whole machine. In Türkiye and the surrounding region, BEISCO is RHCNC's service centre for laser and roll-lathe equipment.
- Before the saleSite visits, technical consulting and answers to your questions.
- At acceptanceYou are hosted at RHCNC's factory in China to accept the machine. The machine is loaded and secured for safe delivery.
- After the saleReturn or replacement terms for manufacturing defects. Missing or wrong accessories and documents supplied. Phone guidance within 24 h of notice. Training in operation, simple repair and maintenance, free of charge.
In China, RHCNC's service model also includes on-site response within 24 h within 500 km, staying on site until the fault is cleared, and maintenance visits every 45 days, logged on its own O&M platform. Response times and visit cycles for Türkiye and the region are agreed in each contract with BEISCO.
Ask us for the service terms that come with your machine.
