Rolling mill guides

Roller & static type · rebar, wire rod, small section and heavy section mills

The few millimetres that keep the bar on the pass line.

A bar that enters the groove off-centre becomes a cobble.

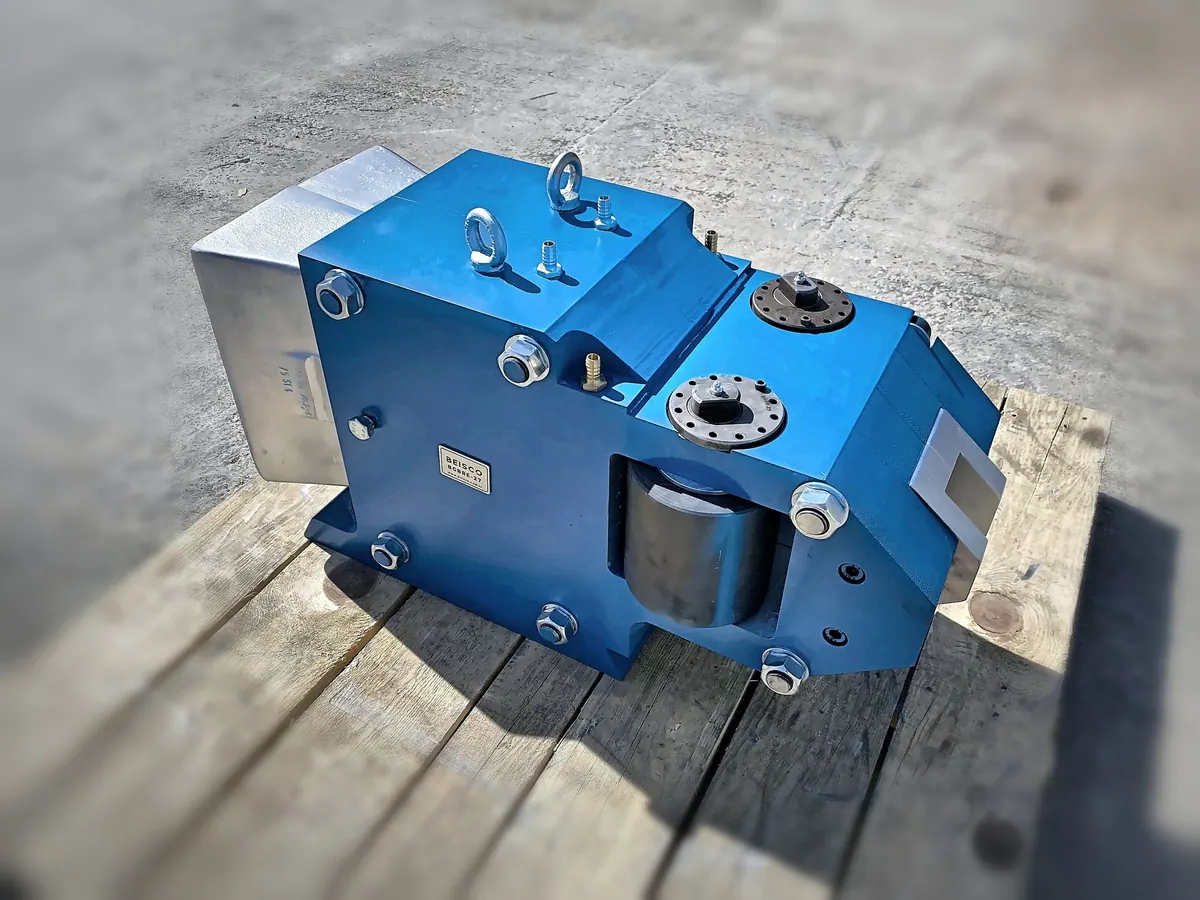

Roller guide with blue housing

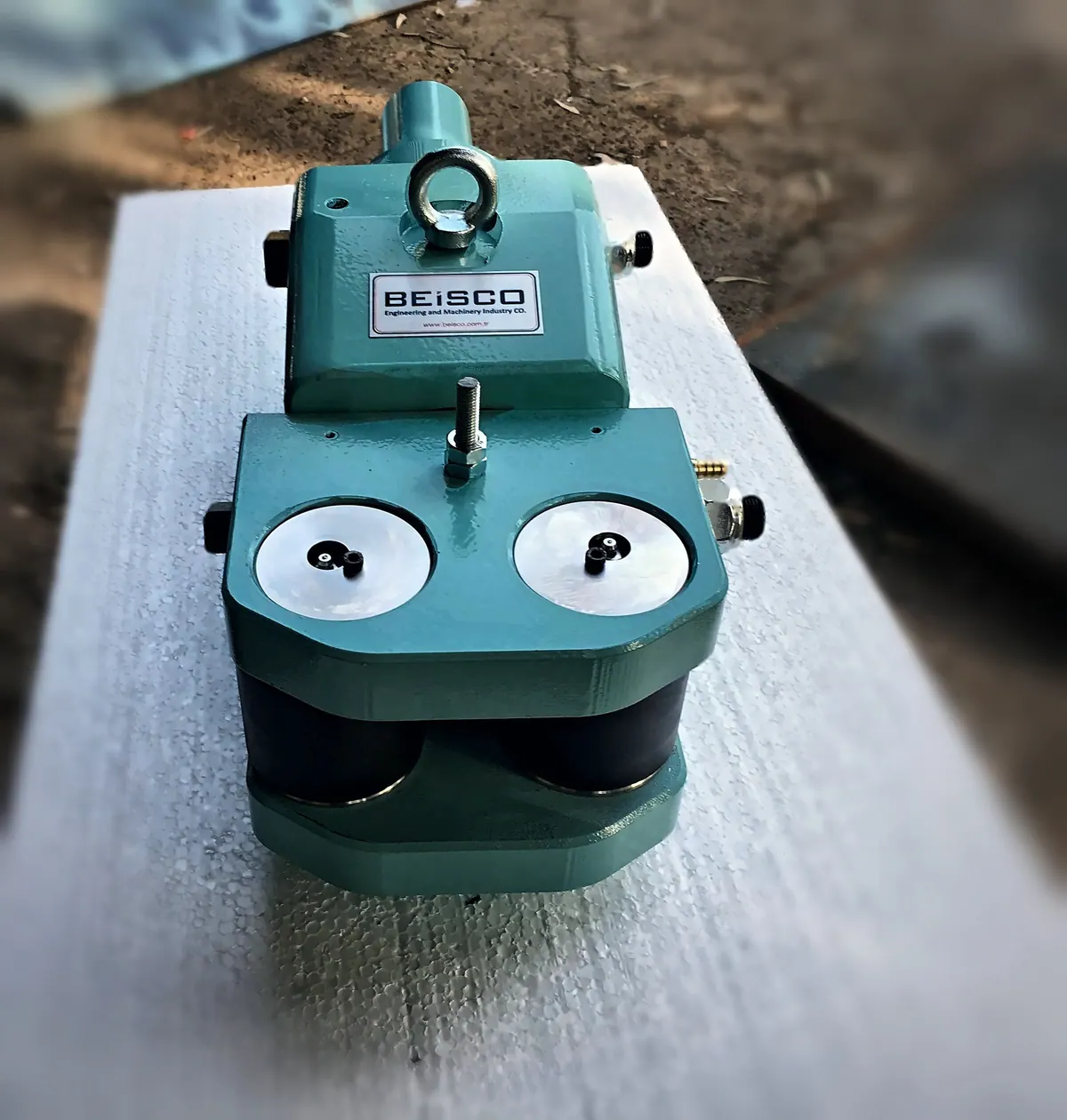

BEISCO roller guide, front view with two guide rollers

Roller and static guides hold the bar on the pass line, stand after stand, at full rolling temperature.

BEISCO designs guides together with the pass design, for rebar, wire rod and section mills, and manufactures them in Izmir, so a replacement or a new size comes from the same drawings as your pass design.

Send us the pass design and the bar sizes. We will design the guides to match.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

05 Rolling mill guides

How a rolling mill guide works

Straight in. Every time.

Straight in. Every time.12345ROLLER ENTRY GUIDE, PLAN VIEWSection A–AOVAL IN, ROUND OUT
Schematic of a roller entry guide, plan view and section. Not to scale.← Swipe to see the whole drawing →
  1. 1Guide bodyTakes the bar from the previous stand and narrows its path.
  2. 2Guide rollersHold the bar upright and centred at the groove entry.
  3. 3AdjustmentSets the rollers to the bar size.
  4. 4Roll grooveReceives the bar exactly on the pass line.
  5. 5Pass lineThe line every bar has to follow, stand after stand.

Field note

Nobody notices a guide that works. Everybody notices the cobble.

05 Rolling mill guides

Photographs

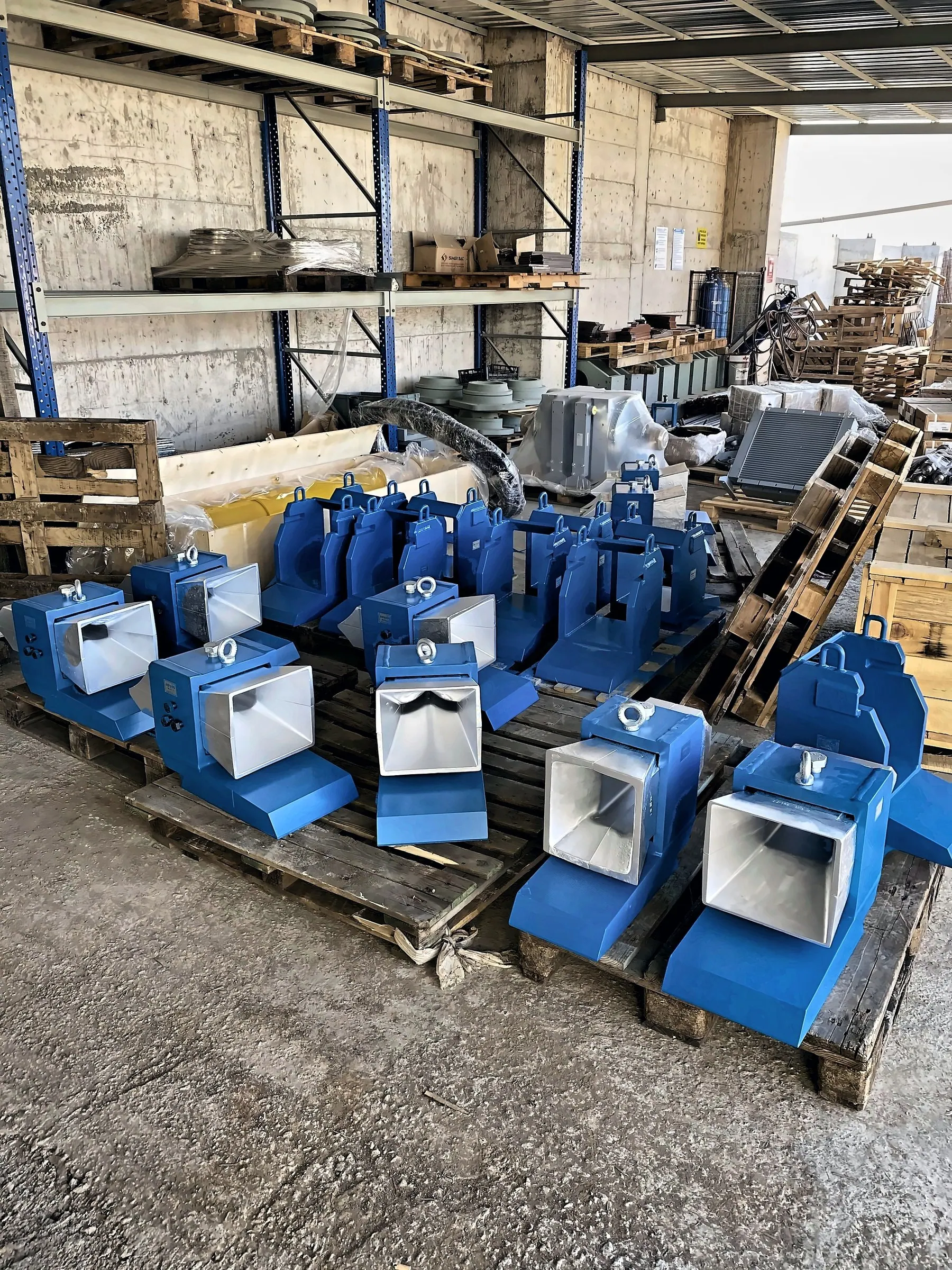

Rolling mill guides on pallets in the warehouse

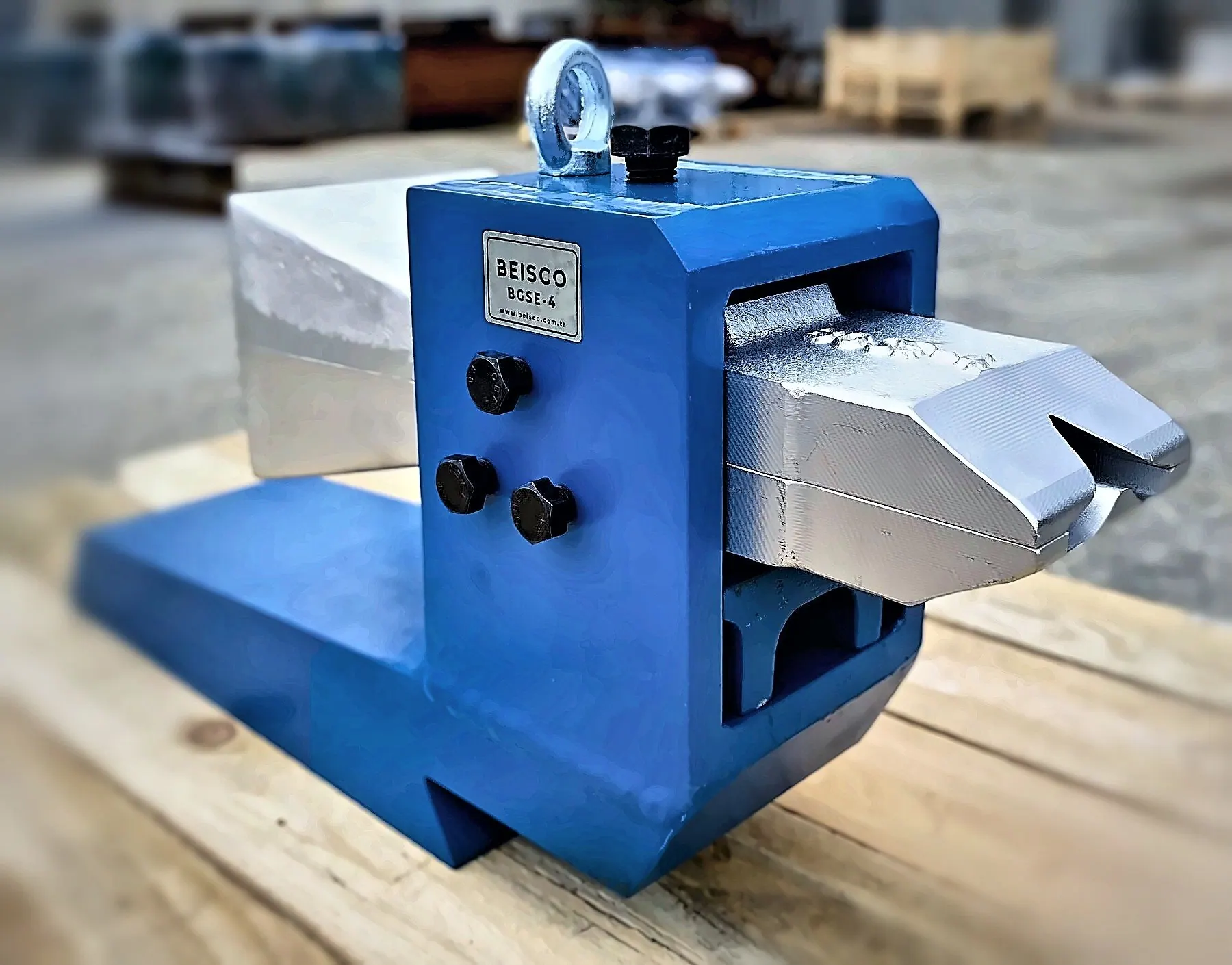

Rolling mill guide with BEISCO nameplate
Rolling mill guide, side view

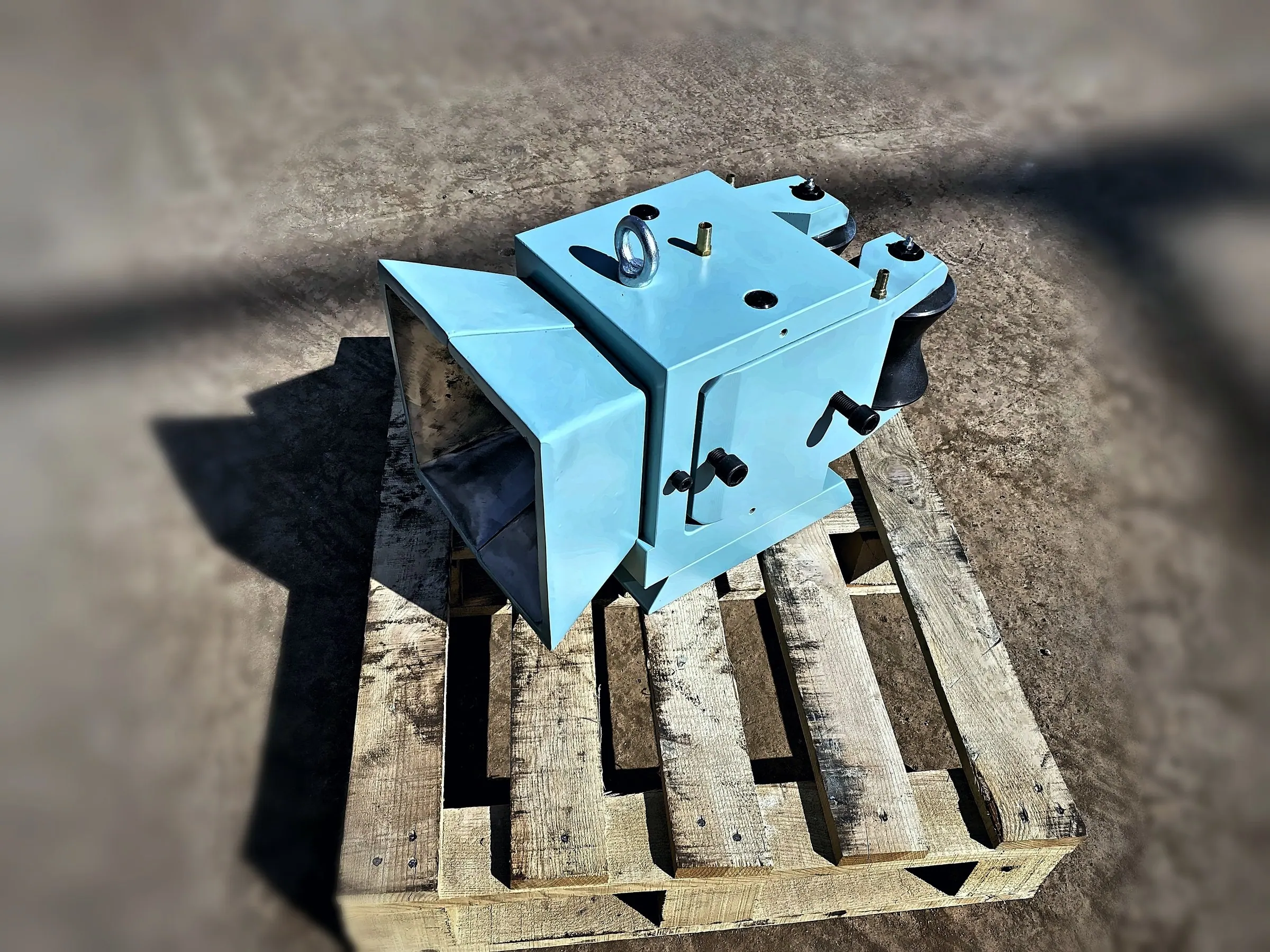

Rolling mill guide on a pallet

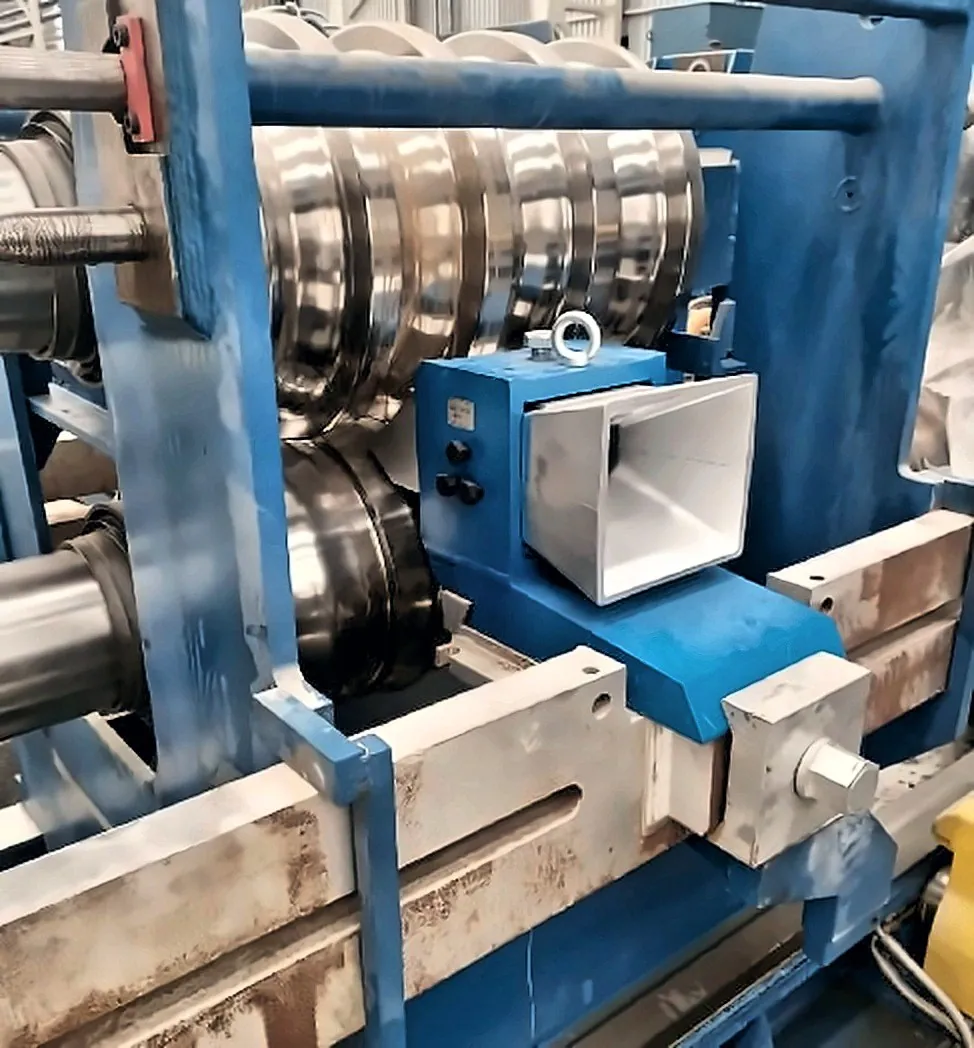

Guide mounted at the stand, in front of the roll grooves
