Cooling beds

For rebar mills, section mills and meltshops

Bars arrive at mill speed. They must leave cold, straight and in order.

The cooling bed is where speed turns into straightness.

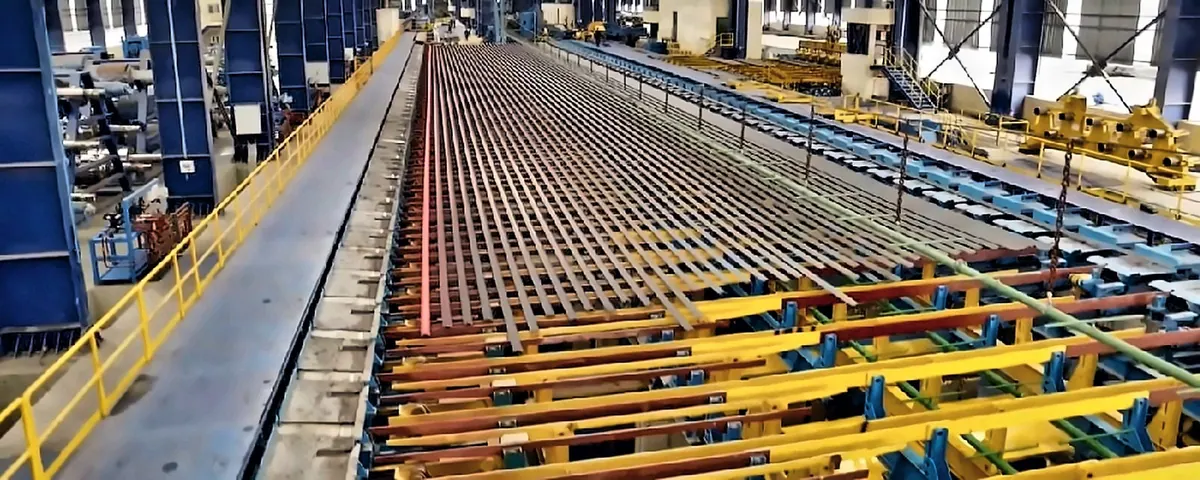

Cooling bed with bars

Each bar has to be braked, placed and indexed so that it cools evenly and reaches the cold shear ready to cut and pack.

BEISCO designs and builds cooling beds and their delivery systems for rebar mills, section mills and meltshops.

Key data
High-speed deliveryup to 40 m/s (MWE technology)

Send us the bar lengths, the delivery speed and the output. We will size the cooling bed.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

10 Cooling beds

How a cooling bed works

Brake it, place it, index it.

Brake it, place it, index it.STEP BY STEP ACROSS THE BEDTO THE COLD SHEARFROM THE DIVIDING SHEARHOTCOLD1234
Schematic top view of a cooling bed. Not to scale.← Swipe to see the whole drawing →
  1. 1Run-in and brakingEach bar is slowed down and laid on the bed.
  2. 2Notched racksStep the bars across the bed, one notch at a time, so they cool evenly.
  3. 3AligningLines up the bar ends.
  4. 4Run-outTakes the bars to the cold shear.

Field note

A cooling bed is the only part of the mill that is supposed to slow things down.

10 Cooling beds

Photographs

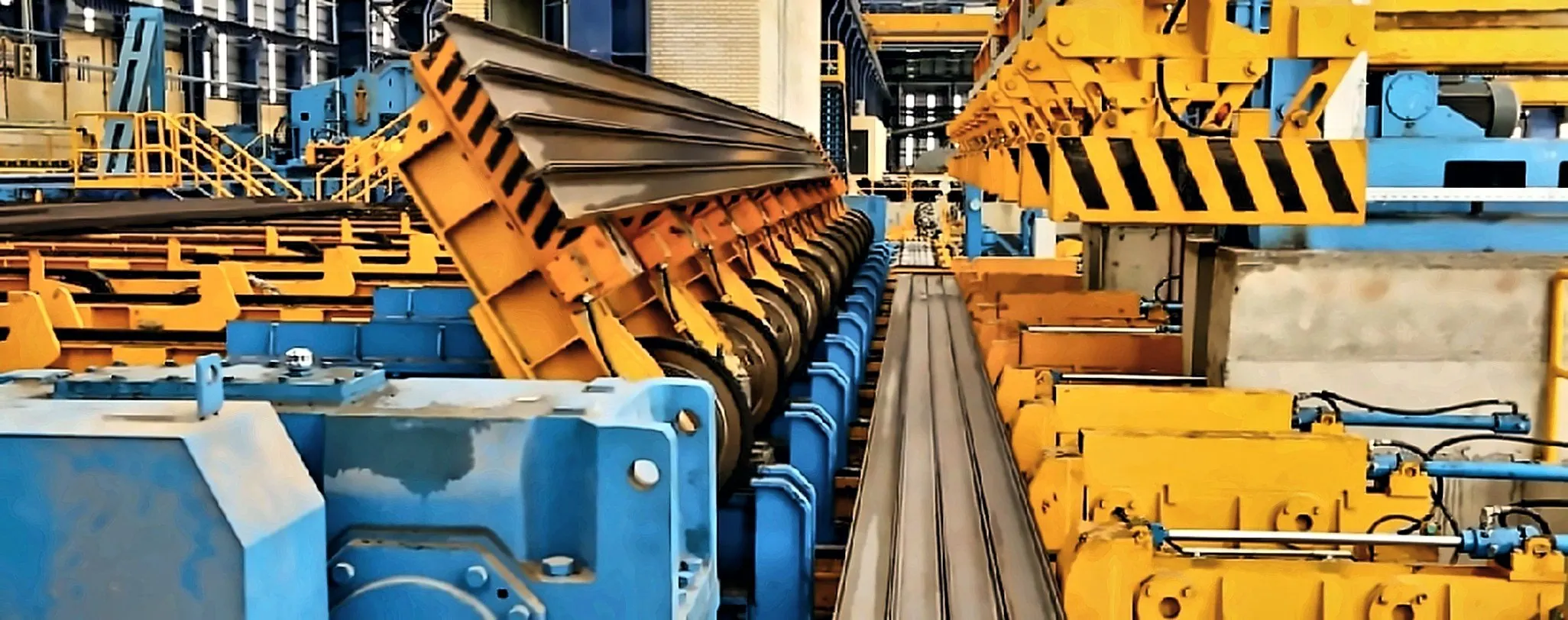

Bars on the notched racks of a cooling bed

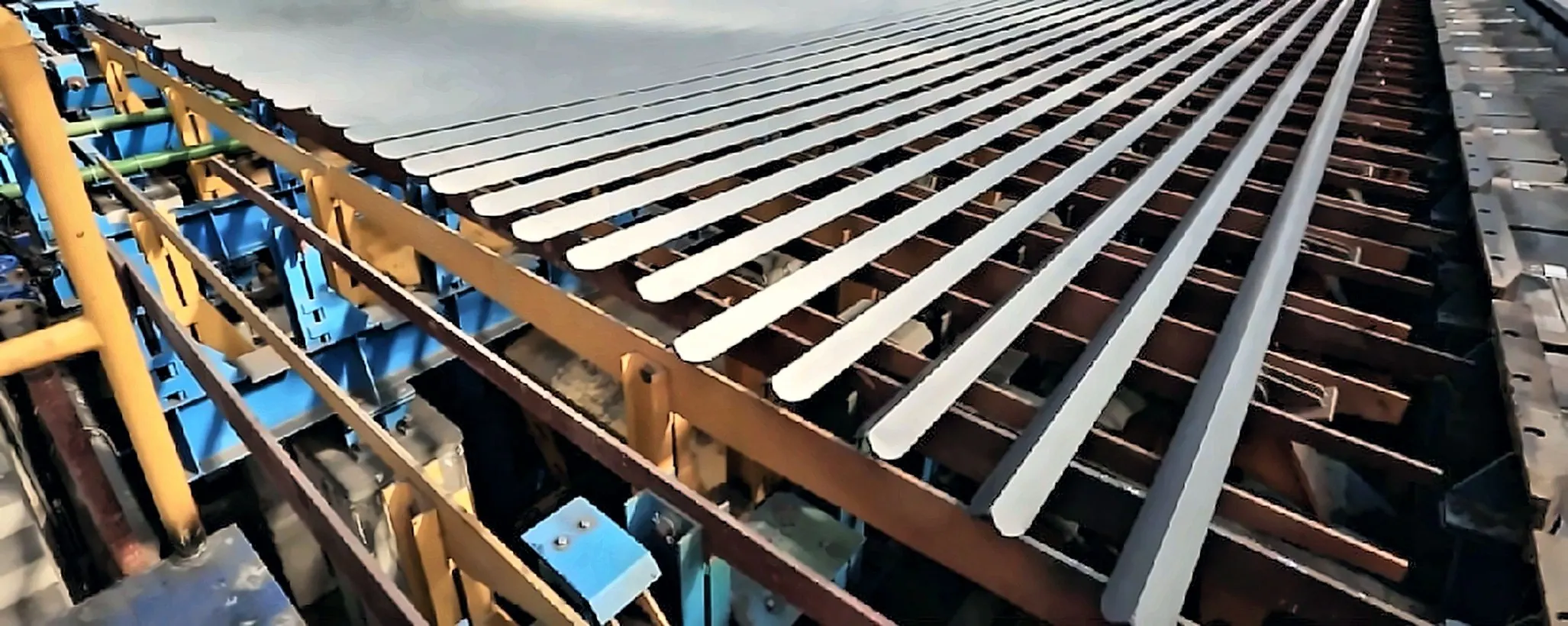

Notched racks of a cooling bed

10 Cooling beds

Where it sits in the rolling mill line

A rolling mill, end to end.12 Meltshop mechanical equipment12MELTSHOP12 Meltshop mechanical equipment12CASTING01 Reheating furnace area01FURNACE03 Rolling mill stands0305 Rolling mill guides05ROUGHING04 Rolling mill shears04CROP SHEAR03 Rolling mill stands0305 Rolling mill guides05INTERMEDIATE03 Rolling mill stands0305 Rolling mill guides05FINISHINGBAR ROUTE08 Cooling systems08QUENCHING04 Rolling mill shears04DIVIDING07 Pinch rolls07PINCH ROLLS10 Cooling beds10COOLING BED04 Rolling mill shears04COLD SHEAR11 Finishing shop11FINISHING AREABAR-IN-COIL ROUTE09 Wire rod mill equipment09BLOCK08 Cooling systems08COOLING09 Wire rod mill equipment09SPOOLER05 Guides: at every standOFF THE LINE06 Gearboxes06GEARBOXES02 Industrial furnaces02INDUSTRIAL FURNACES

Schematic, not to scale. Numbers: product chapters.← Swipe to see the whole drawing →

  1. 01 Reheating furnace & furnace area mechanical equipment
  2. 02 Industrial furnaces
  3. 03 Rolling mill stands
  4. 04 Rolling mill shears
  5. 05 Rolling mill guides
  6. 06 Gearboxes
  7. 07 Pinch rolls
  8. 08 Cooling systems
  9. 09 Wire rod mill equipment
  10. 10 Cooling beds
  11. 11 Straightening machines
  12. 12 Meltshop mechanical equipment

Related chapters

04 Rolling mill shears11 Straightening machines
