Wire rod mill equipment

Monoblock · Varioblock · X-Block · spooler

100 metres a second. Still in control.

At the end of a rod mill the product leaves the last stand at up to 100 m/s: 360 km/h.

MWE Mill Solutions GmbH

Wire rod mill equipment · MWE Mill Solutions GmbH

Laying head for a wire rod line

Multi-driven X-Blocks shape the bar at high speed and low temperature, so it leaves with defined metallurgical properties. Monoblock and Varioblock designs serve conventional layouts. Spoolers wind bars into compact coils under tension.

Designed with MWE. Manufactured in Izmir and installed on site by BEISCO.

Key data
X-Block
Product speedup to 100 m/s (designed for 120)
Bar version, to the cooling bed2–8 stands · up to 40 m/s · Ø 8–40 mm
Spooler
ProductRounds Ø 8–42 mm, squares, hexagons
Reeling speedup to 30 m/s
CoilID 850 / OD 1,250 mm · up to 3,000 kg

Send us the product range and the finishing speed. We will propose the block and the spooler.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

09 Wire rod mill equipment

How a wire rod block and spooler work

360 km/h, and the bar still has to arrive round.

360 km/h, and the bar still has to arrive round.ONE DRIVE PER STANDup to 100 m/sSPEED RISES STAND BY STANDOD 1,250 mmID 850 mmSpooler coil, up to 3,000 kg1234
Schematic of an individually driven rod block (X-Block type), its speed steps and a spooler coil. Not to scale.← Swipe to see the whole drawing →
  1. 1BlockSeveral stands close together, one after the other.
  2. 2Roll pairs at 90°Each pair works the bar from a different side, so it never needs twisting.
  3. 3DrivesOne drive per stand (X-Block type), so every stand runs at its own speed as the bar gets longer and faster.
  4. 4Spooler coilBars wound into compact coils under tension.

Field note

At 100 m/s, a metre of bar passes in a hundredth of a second. There is no time for second thoughts.

09 Wire rod mill equipment

Photographs

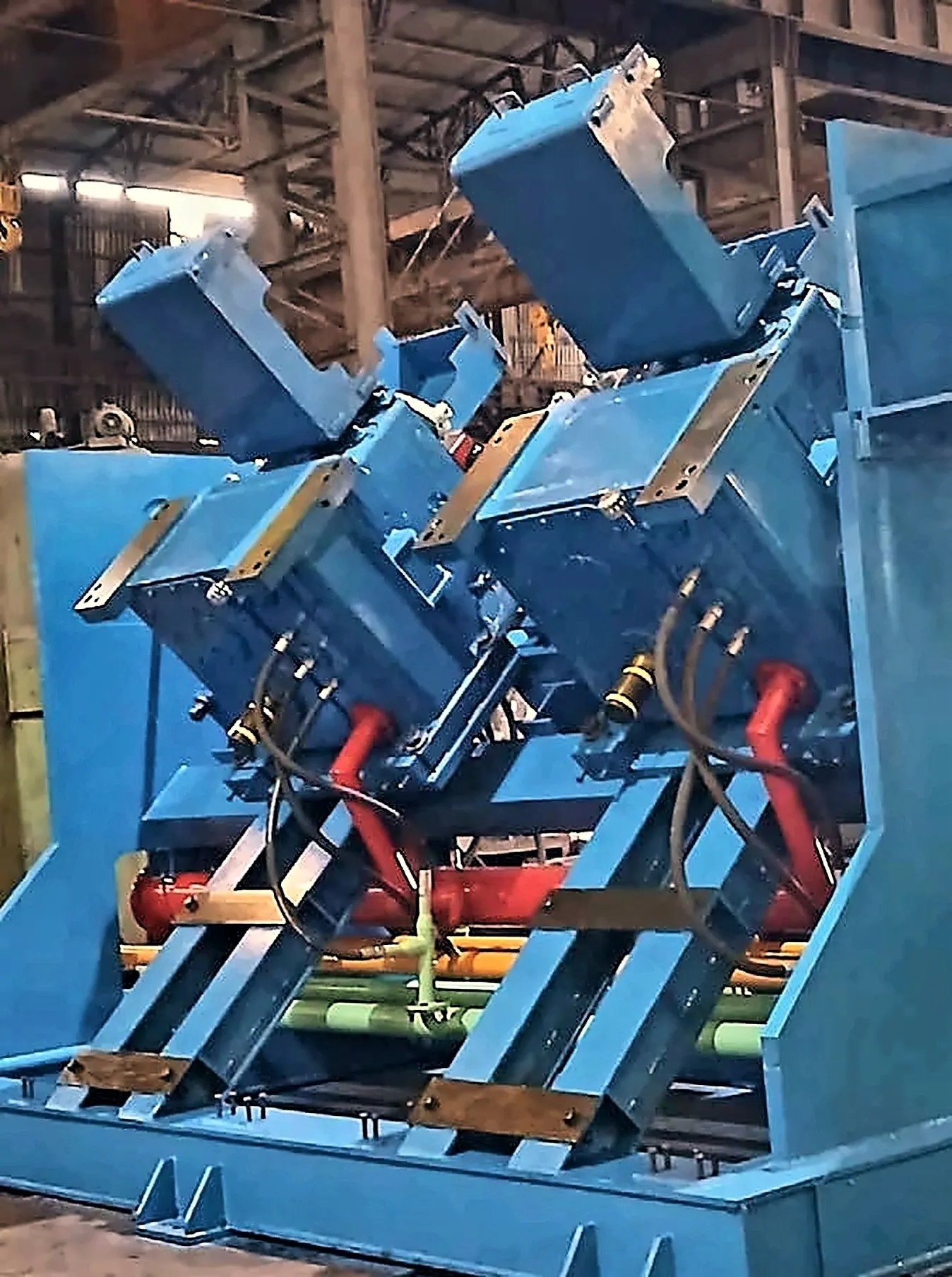

MWE X-Block wire rod block

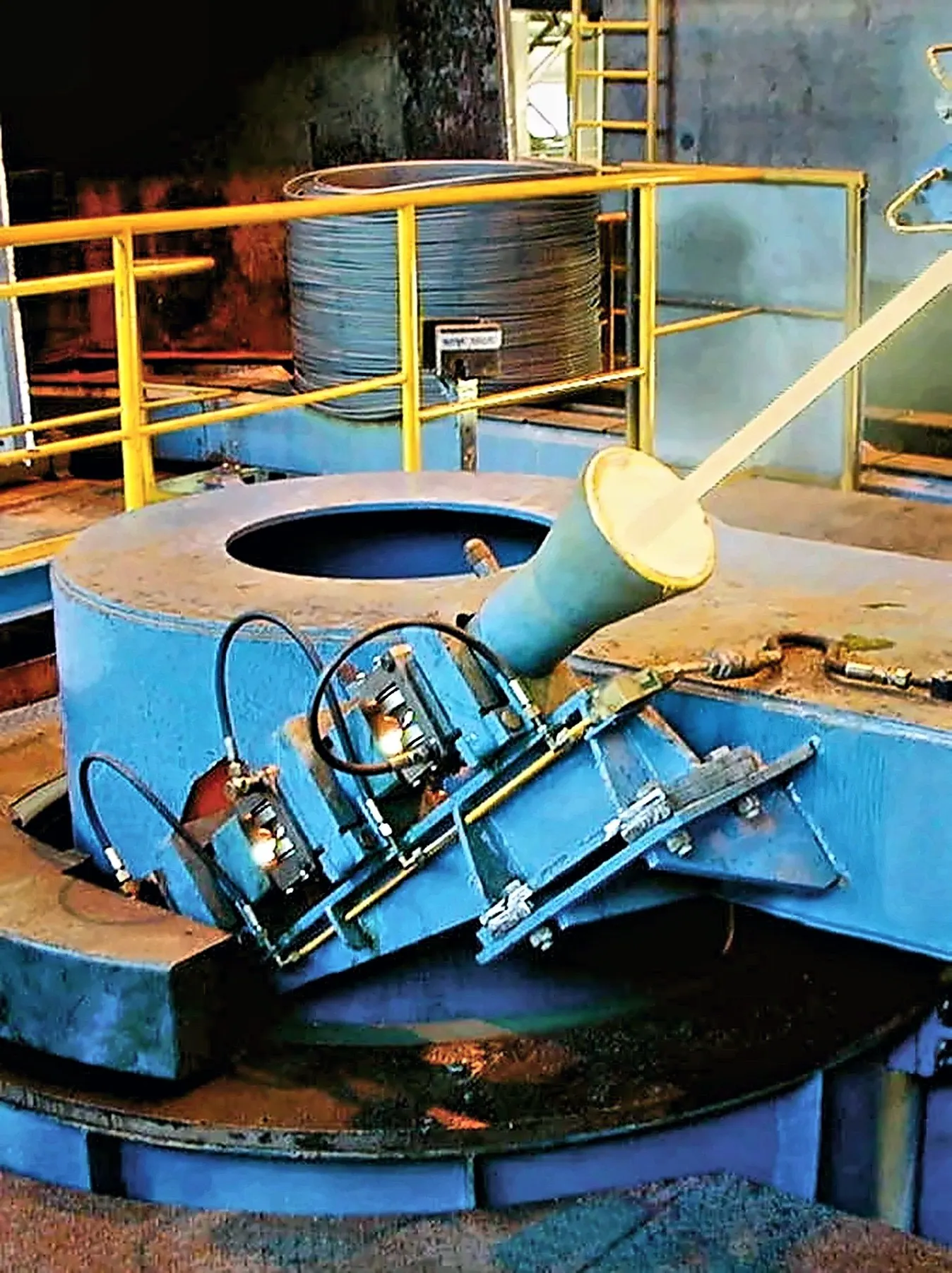

Spooler winding a coil
MWE X-Block wire rod block
Spooler winding a coil

09 Wire rod mill equipment

Where it sits in the rolling mill line

A rolling mill, end to end.12 Meltshop mechanical equipment12MELTSHOP12 Meltshop mechanical equipment12CASTING01 Reheating furnace area01FURNACE03 Rolling mill stands0305 Rolling mill guides05ROUGHING04 Rolling mill shears04CROP SHEAR03 Rolling mill stands0305 Rolling mill guides05INTERMEDIATE03 Rolling mill stands0305 Rolling mill guides05FINISHINGBAR ROUTE08 Cooling systems08QUENCHING04 Rolling mill shears04DIVIDING07 Pinch rolls07PINCH ROLLS10 Cooling beds10COOLING BED04 Rolling mill shears04COLD SHEAR11 Finishing shop11FINISHING AREABAR-IN-COIL ROUTE09 Wire rod mill equipment09BLOCK08 Cooling systems08COOLING09 Wire rod mill equipment09SPOOLER05 Guides: at every standOFF THE LINE06 Gearboxes06GEARBOXES02 Industrial furnaces02INDUSTRIAL FURNACES

Schematic, not to scale. Numbers: product chapters.← Swipe to see the whole drawing →

  1. 01 Reheating furnace & furnace area mechanical equipment
  2. 02 Industrial furnaces
  3. 03 Rolling mill stands
  4. 04 Rolling mill shears
  5. 05 Rolling mill guides
  6. 06 Gearboxes
  7. 07 Pinch rolls
  8. 08 Cooling systems
  9. 09 Wire rod mill equipment
  10. 10 Cooling beds
  11. 11 Straightening machines
  12. 12 Meltshop mechanical equipment
