Straightening machines

Finishing shop · housingless straightening machines

Your customer never sees the mill. They see the bundle.

Straight bars, square ends, the right count, a tight binding: the finishing shop is the mill's handshake with the customer.

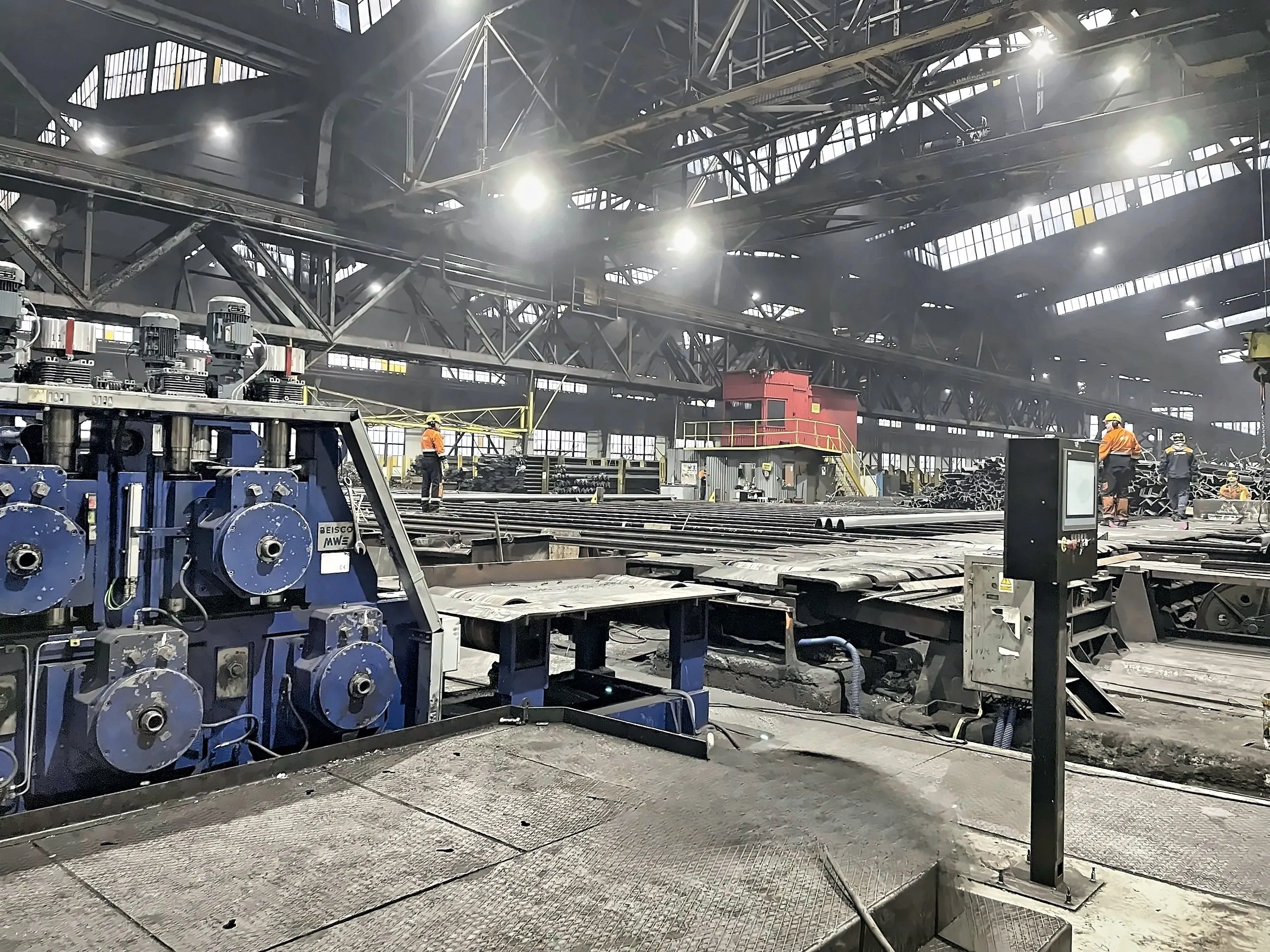

Straightening machine in the finishing area, with its drives

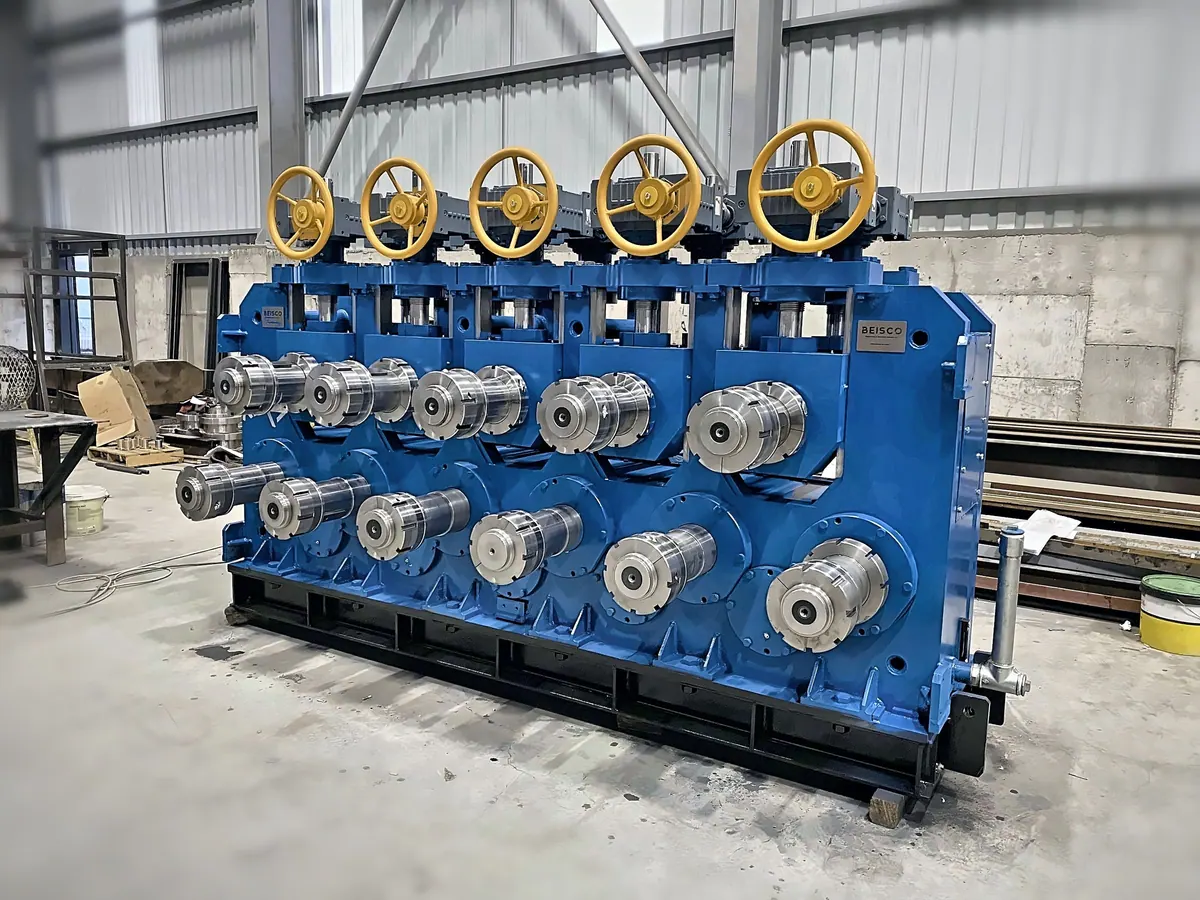

Straightening machine in the workshop

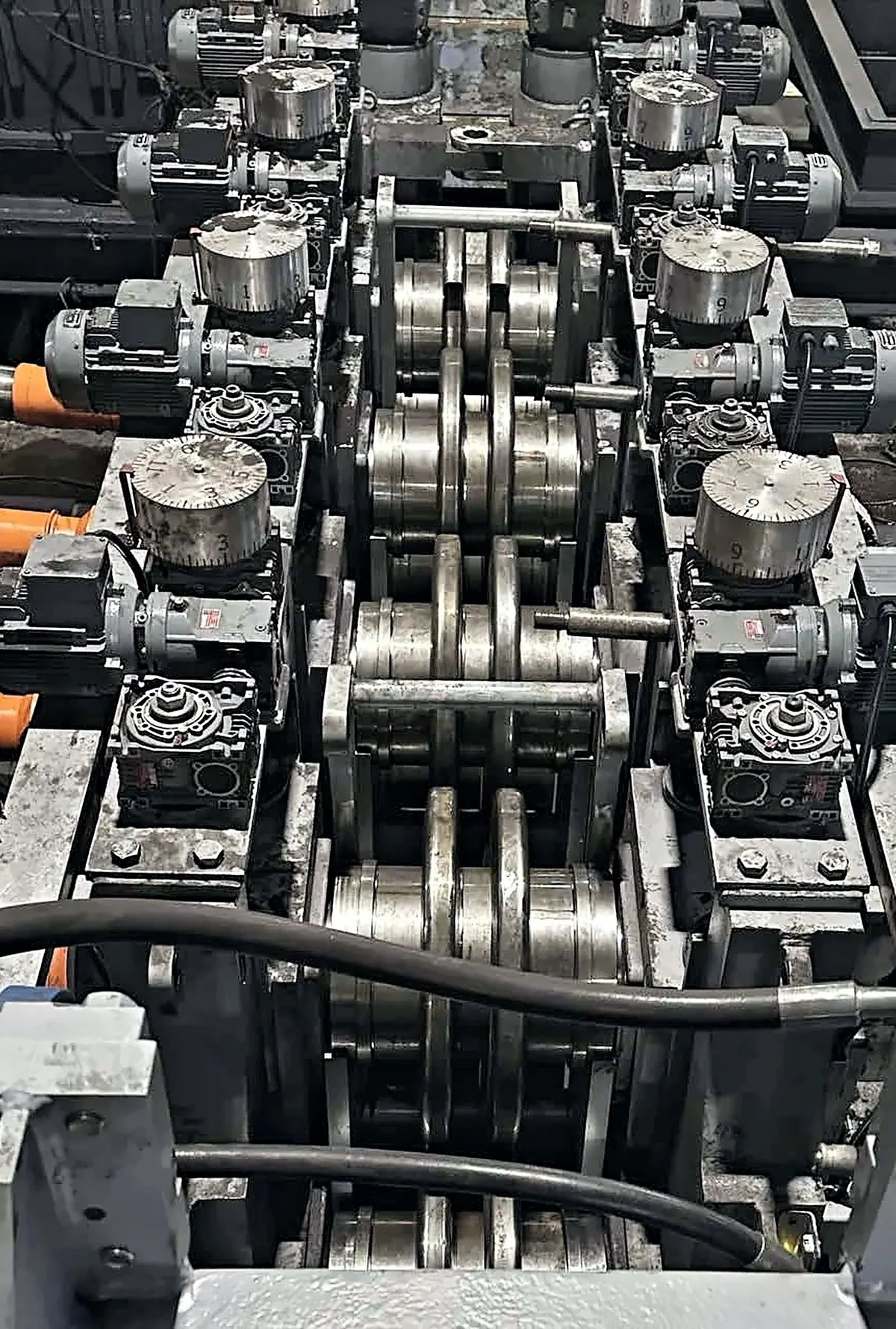

Straightening rolls from above

Straightening is bending: each roll bends the bar a little less than the one before, until what is left is straight.

Housingless straightening machines bring high rigidity, very short roll changes with MWE's Basket Technology® and multi-driven bottom rolls with no heavy gearbox.

Key data
Pitch600 / 800 / 1,000 mm
Roll diameter480–850 mm
Straightening force per roll500–2,000 kN
Working speed0.75–3.5 m/s

Send us the bar sizes and the straightness you need. We will propose the straightener.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

11 Finishing shop

How a straightening machine works

Bend it, bend it back. A little less each time.

Bend it, bend it back. A little less each time.Pitch 600 / 800 / 1,000 mmRoll Ø 480–850 mm123Each bend a little smaller than the last
Schematic of a straightening roll arrangement. Not to scale.← Swipe to see the whole drawing →
  1. 1Upper rollsSet the bending of each pass.
  2. 2Lower rollsMulti-driven, with no heavy gearbox.
  3. 3BarLeaves the last roll straight.

Field note

Straightening sounds simple. Then you try it at 3.5 m/s.

11 Finishing shop

Photographs

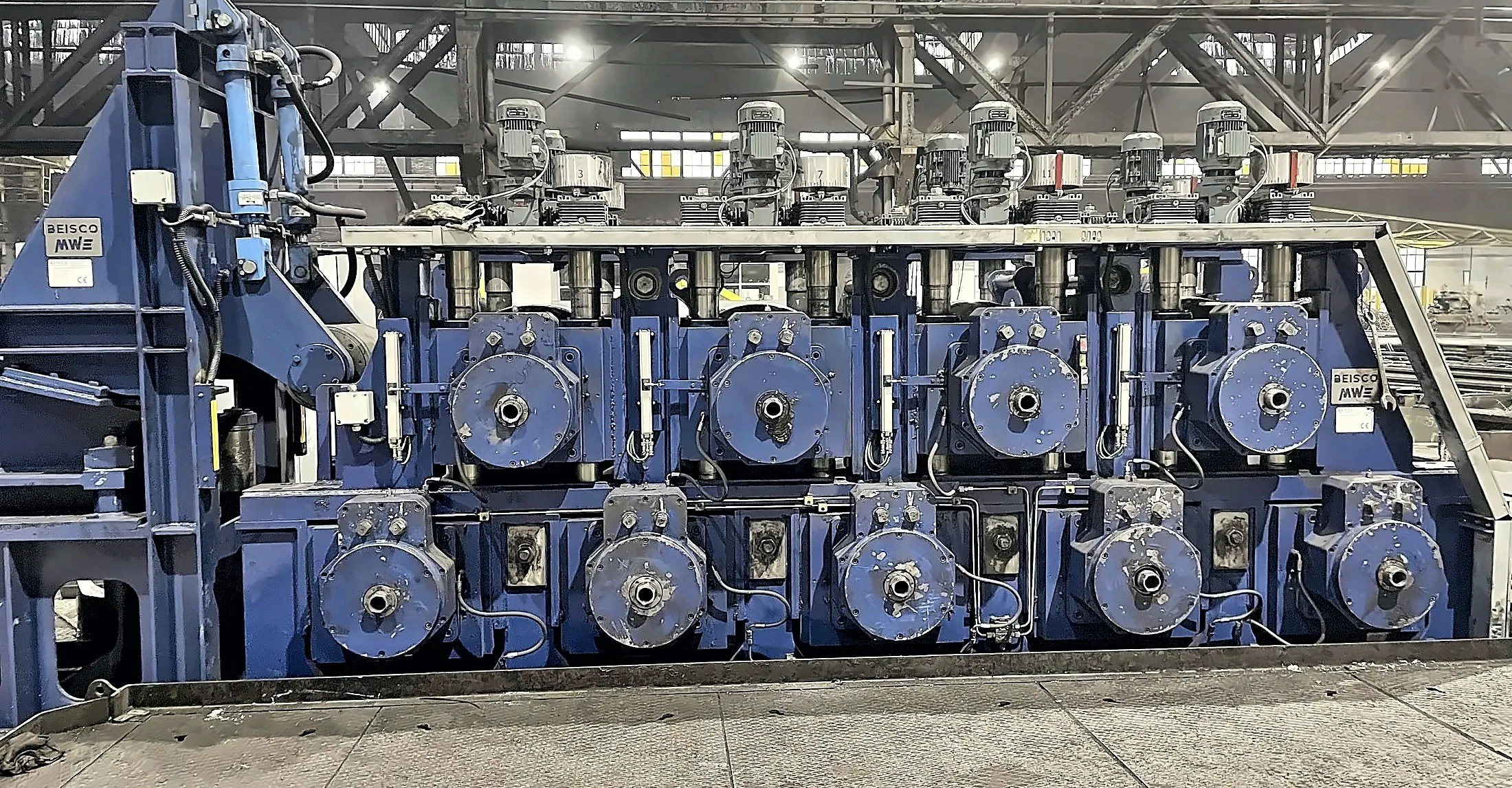

Straightening machine in the mill

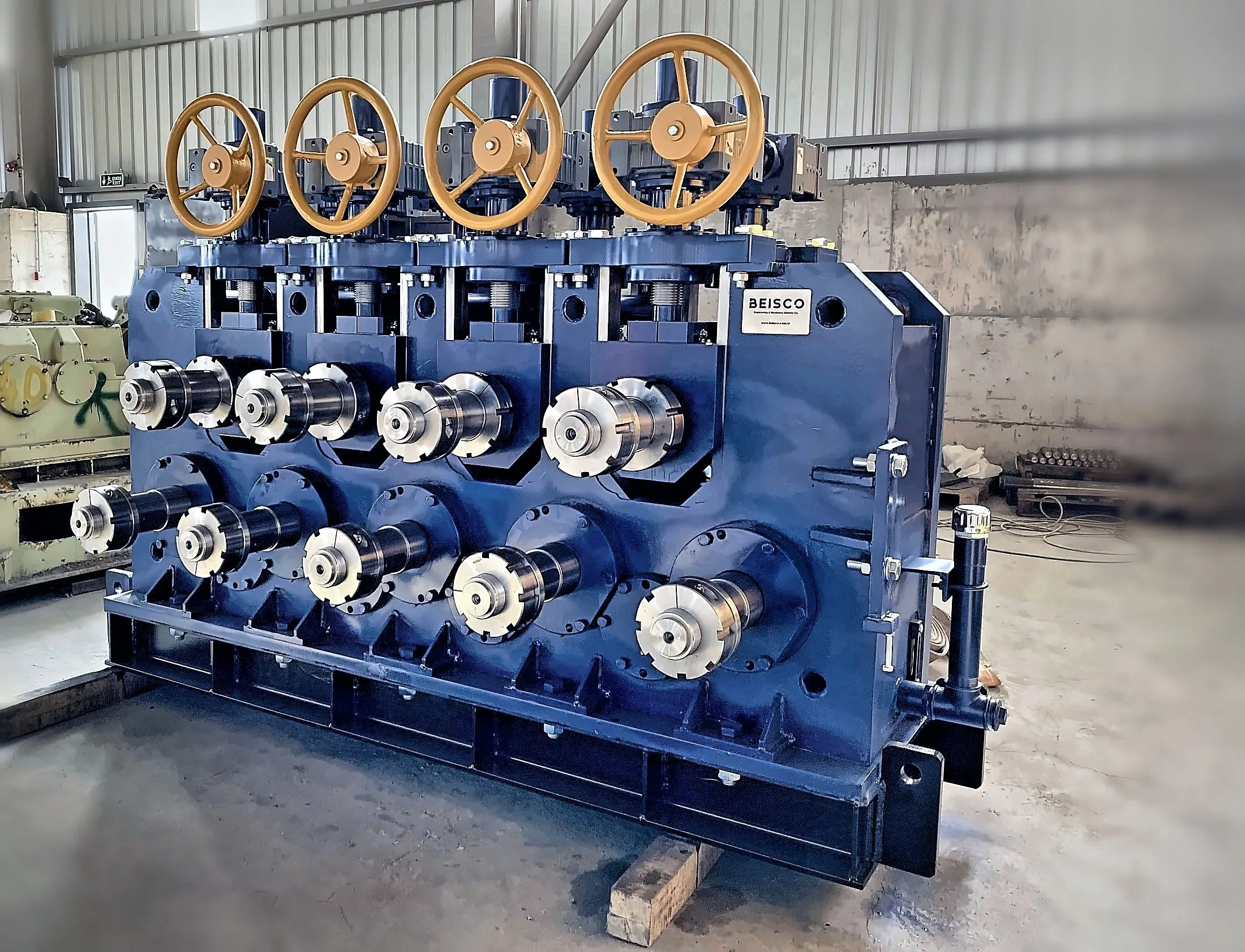

Straightening machine with BEISCO nameplate

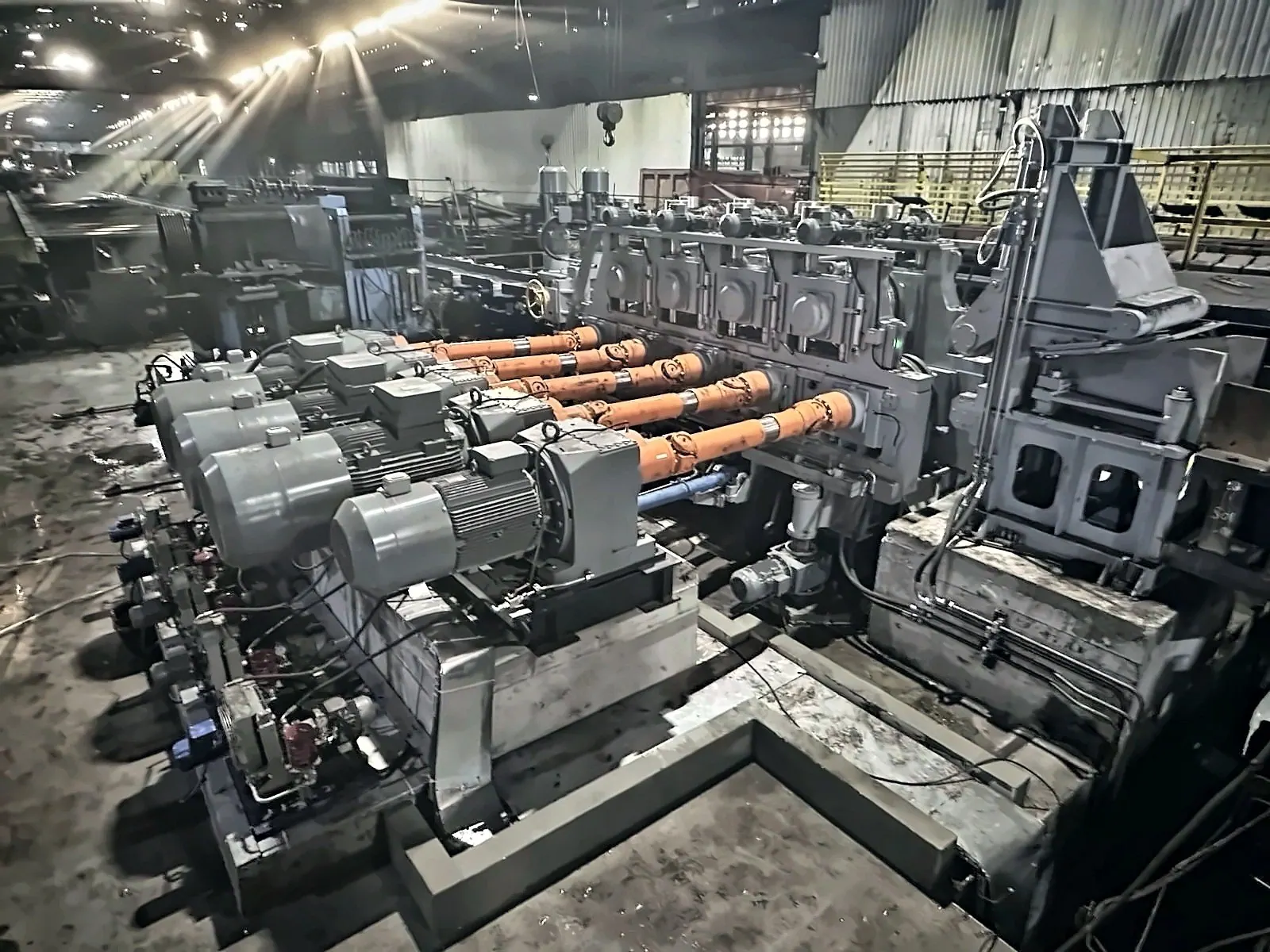

Straightening machine in the finishing area
Straightening machine and drive motors

11 Finishing shop

Where it sits in the rolling mill line

A rolling mill, end to end.12 Meltshop mechanical equipment12MELTSHOP12 Meltshop mechanical equipment12CASTING01 Reheating furnace area01FURNACE03 Rolling mill stands0305 Rolling mill guides05ROUGHING04 Rolling mill shears04CROP SHEAR03 Rolling mill stands0305 Rolling mill guides05INTERMEDIATE03 Rolling mill stands0305 Rolling mill guides05FINISHINGBAR ROUTE08 Cooling systems08QUENCHING04 Rolling mill shears04DIVIDING07 Pinch rolls07PINCH ROLLS10 Cooling beds10COOLING BED04 Rolling mill shears04COLD SHEAR11 Finishing shop11FINISHING AREABAR-IN-COIL ROUTE09 Wire rod mill equipment09BLOCK08 Cooling systems08COOLING09 Wire rod mill equipment09SPOOLER05 Guides: at every standOFF THE LINE06 Gearboxes06GEARBOXES02 Industrial furnaces02INDUSTRIAL FURNACES

Schematic, not to scale. Numbers: product chapters.← Swipe to see the whole drawing →

  1. 01 Reheating furnace & furnace area mechanical equipment
  2. 02 Industrial furnaces
  3. 03 Rolling mill stands
  4. 04 Rolling mill shears
  5. 05 Rolling mill guides
  6. 06 Gearboxes
  7. 07 Pinch rolls
  8. 08 Cooling systems
  9. 09 Wire rod mill equipment
  10. 10 Cooling beds
  11. 11 Straightening machines
  12. 12 Meltshop mechanical equipment
