Water cooling systems

Thermocoil® cooling trains

The last stand shapes the bar. The water decides what it becomes.

After the finishing stand, controlled water cooling decides the final microstructure.

MWE Mill Solutions GmbH

Thermocoil® · MWE Mill Solutions GmbH

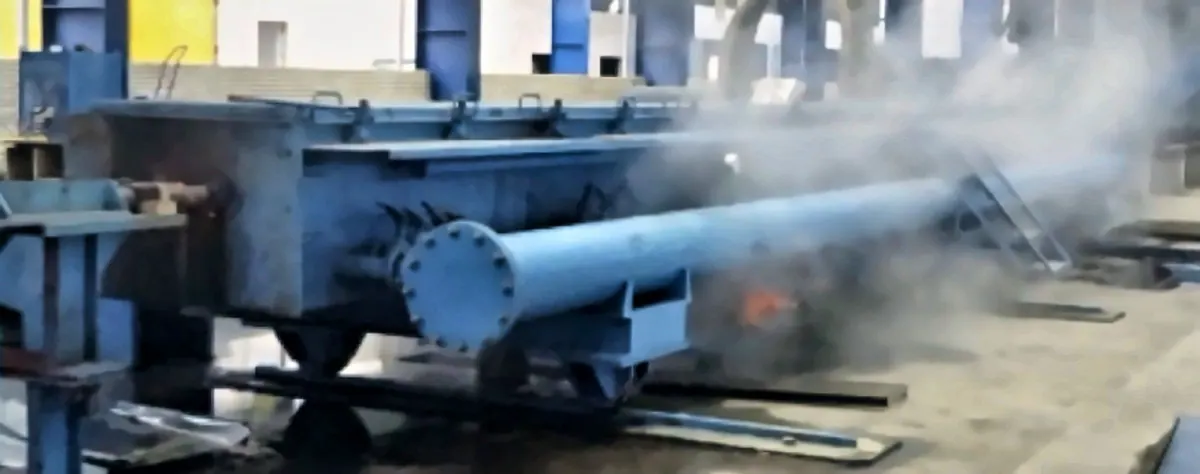

Water cooling line in operation

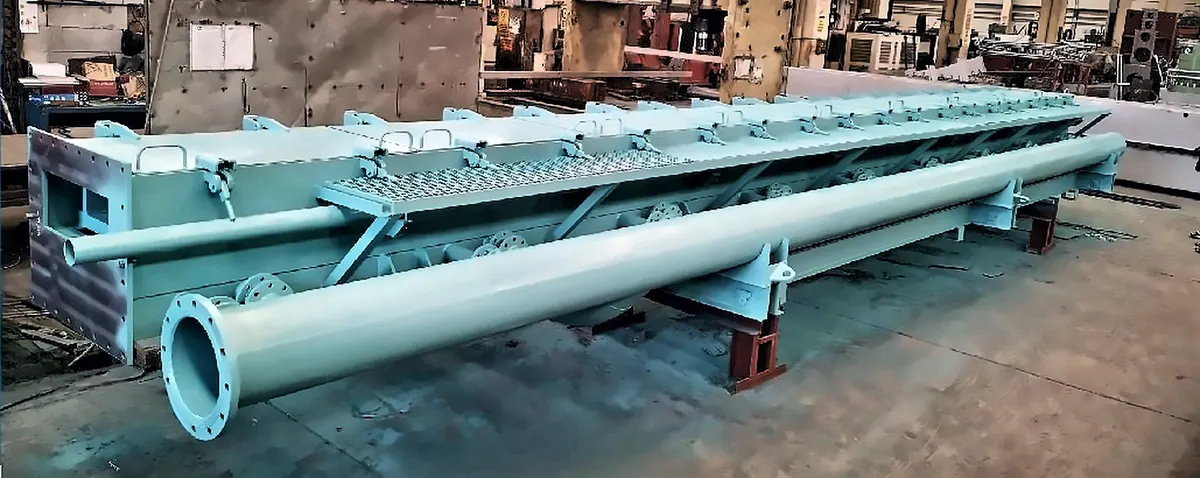

Water cooling line section in the workshop

Thermocoil® was developed by SKET in the 1980s for wire rod lines at product speeds up to 100 m/s; MWE carries it forward with the APROCS control system and has also extended it to bar mills.

BEISCO manufactures Thermocoil® cooling boxes, pipes and stripper nozzles to MWE design.

Key data
Product speed (wire rod)up to 100 m/s
Process controlAPROCS
ApplicationsWire rod cooling lines, bar quenching lines

Tell us the product, the speed and the properties you need. We will propose the cooling line with MWE.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

08 Cooling systems

How a water cooling line works

The rolling is finished. The steel is still making up its mind.

The rolling is finished. The steel is still making up its mind.Equalising distanceTO LAYING HEAD / COOLING BED1234DISTANCETEMPERATURESURFACECOREIllustrative temperature along the line
Schematic of a water cooling line and an illustrative temperature course. Not to scale.← Swipe to see the whole drawing →
  1. 1Finishing standThe bar leaves with its final size, still hot.
  2. 2Cooling boxesWater cools the surface, box by box.
  3. 3Stripper nozzlesTake the water off the bar.
  4. 4Equalising distanceHeat from the core evens out the temperature of the bar.

Field note

Water is cheap. Getting it to the right place, for the right time, at up to 100 m/s is not.

08 Cooling systems

Where it sits in the rolling mill line

A rolling mill, end to end.12 Meltshop mechanical equipment12MELTSHOP12 Meltshop mechanical equipment12CASTING01 Reheating furnace area01FURNACE03 Rolling mill stands0305 Rolling mill guides05ROUGHING04 Rolling mill shears04CROP SHEAR03 Rolling mill stands0305 Rolling mill guides05INTERMEDIATE03 Rolling mill stands0305 Rolling mill guides05FINISHINGBAR ROUTE08 Cooling systems08QUENCHING04 Rolling mill shears04DIVIDING07 Pinch rolls07PINCH ROLLS10 Cooling beds10COOLING BED04 Rolling mill shears04COLD SHEAR11 Finishing shop11FINISHING AREABAR-IN-COIL ROUTE09 Wire rod mill equipment09BLOCK08 Cooling systems08COOLING09 Wire rod mill equipment09SPOOLER05 Guides: at every standOFF THE LINE06 Gearboxes06GEARBOXES02 Industrial furnaces02INDUSTRIAL FURNACES

Schematic, not to scale. Numbers: product chapters.← Swipe to see the whole drawing →

  1. 01 Reheating furnace & furnace area mechanical equipment
  2. 02 Industrial furnaces
  3. 03 Rolling mill stands
  4. 04 Rolling mill shears
  5. 05 Rolling mill guides
  6. 06 Gearboxes
  7. 07 Pinch rolls
  8. 08 Cooling systems
  9. 09 Wire rod mill equipment
  10. 10 Cooling beds
  11. 11 Straightening machines
  12. 12 Meltshop mechanical equipment

Related chapters

09 Wire rod mill equipment10 Cooling beds
