Pinch rolls

Furnace area · mill · high speed · loopers

The last firm grip before the shear, the cooling bed or the coil.

Wherever the bar must be pushed, braked or steered, a pinch roll takes hold of it.

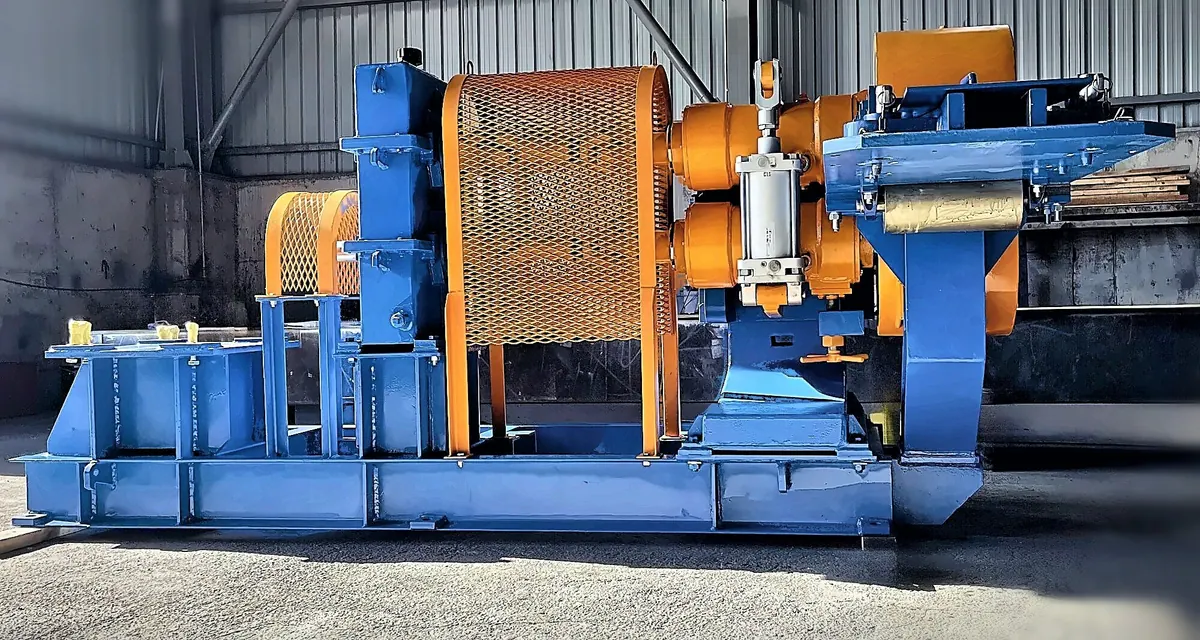

Pinch roll unit with drive motor

At the furnace, ahead of shears, before cooling beds, laying heads and reels. In bar-in-coil lines, back-tension pinch rolls switch to braking mode as the tail leaves the last stand, so the coil is wound under tension.

BEISCO builds furnace-area, mill and high-speed pinch rolls, and loopers.

Tell us where the bar has to be pushed, braked or steered. We will propose the pinch roll.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

07 Pinch rolls

How a pinch roll works

Push, brake or steer. Sometimes all three.

Push, brake or steer. Sometimes all three.DRIVE1234PUSHBRAKESTEER
Schematic of a pinch roll and its three jobs. Not to scale.← Swipe to see the whole drawing →
  1. 1Upper rollPresses the bar onto the lower roll.
  2. 2Lower rollDriven: turns the grip into movement.
  3. 3Clamping forceJust enough to move the bar.
  4. 4BarPushed, braked or steered to where it has to go.

Field note

Too loose and the bar wanders. Too tight and the surface pays.

07 Pinch rolls

Photographs

Pinch roll unit

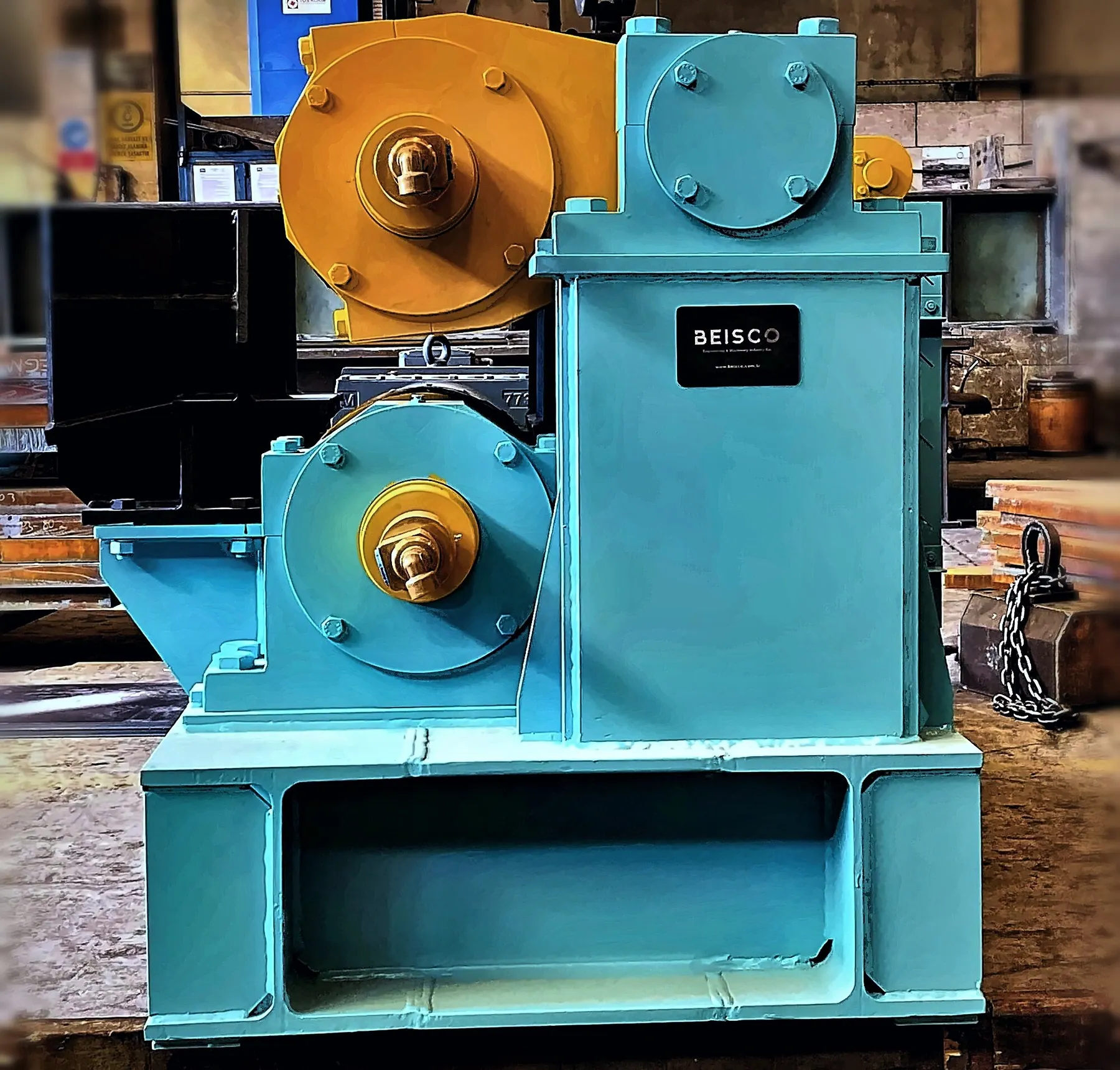

Pinch roll with BEISCO nameplate, both rolls visible

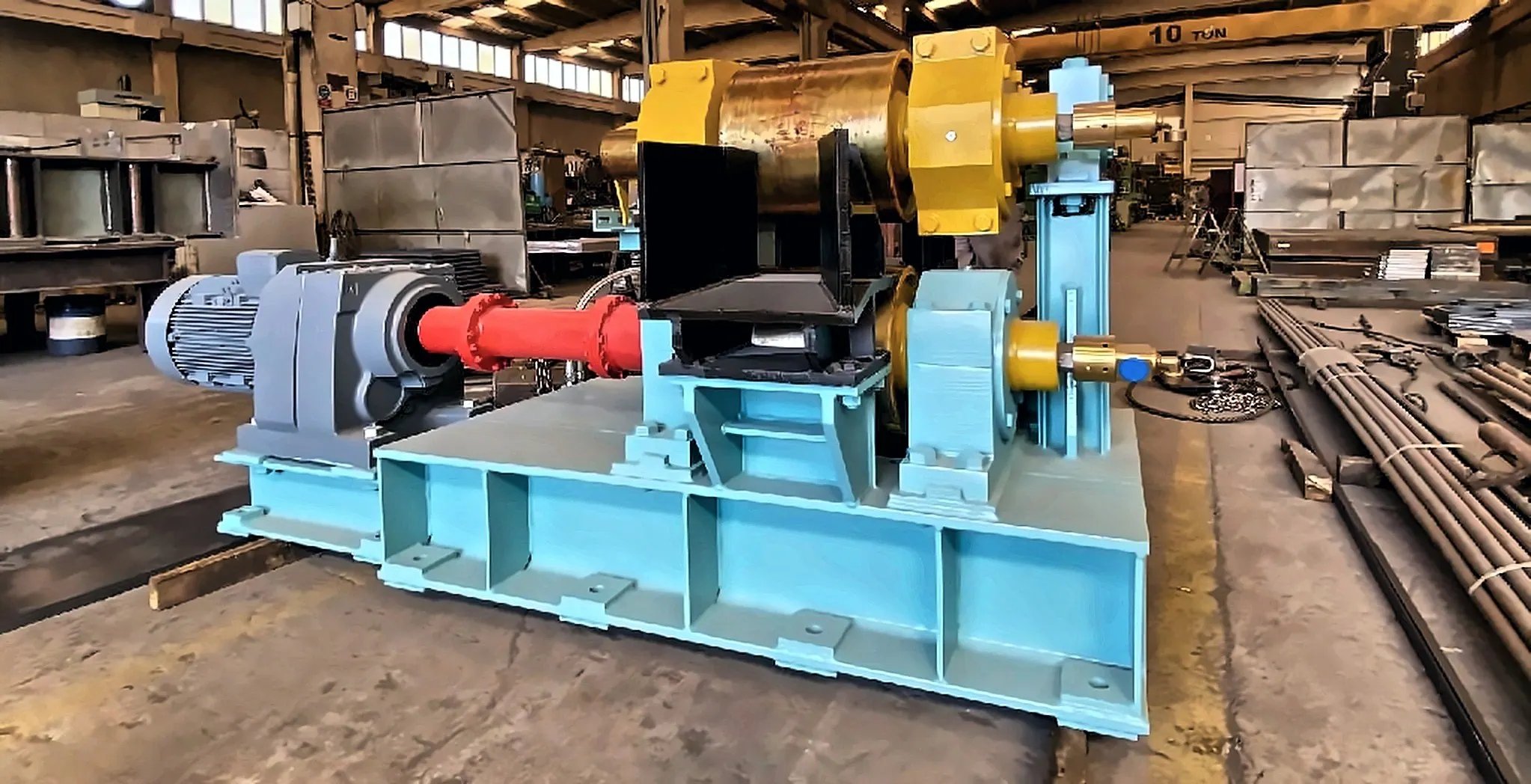

Pinch roll in the workshop, with motor and cardan shaft

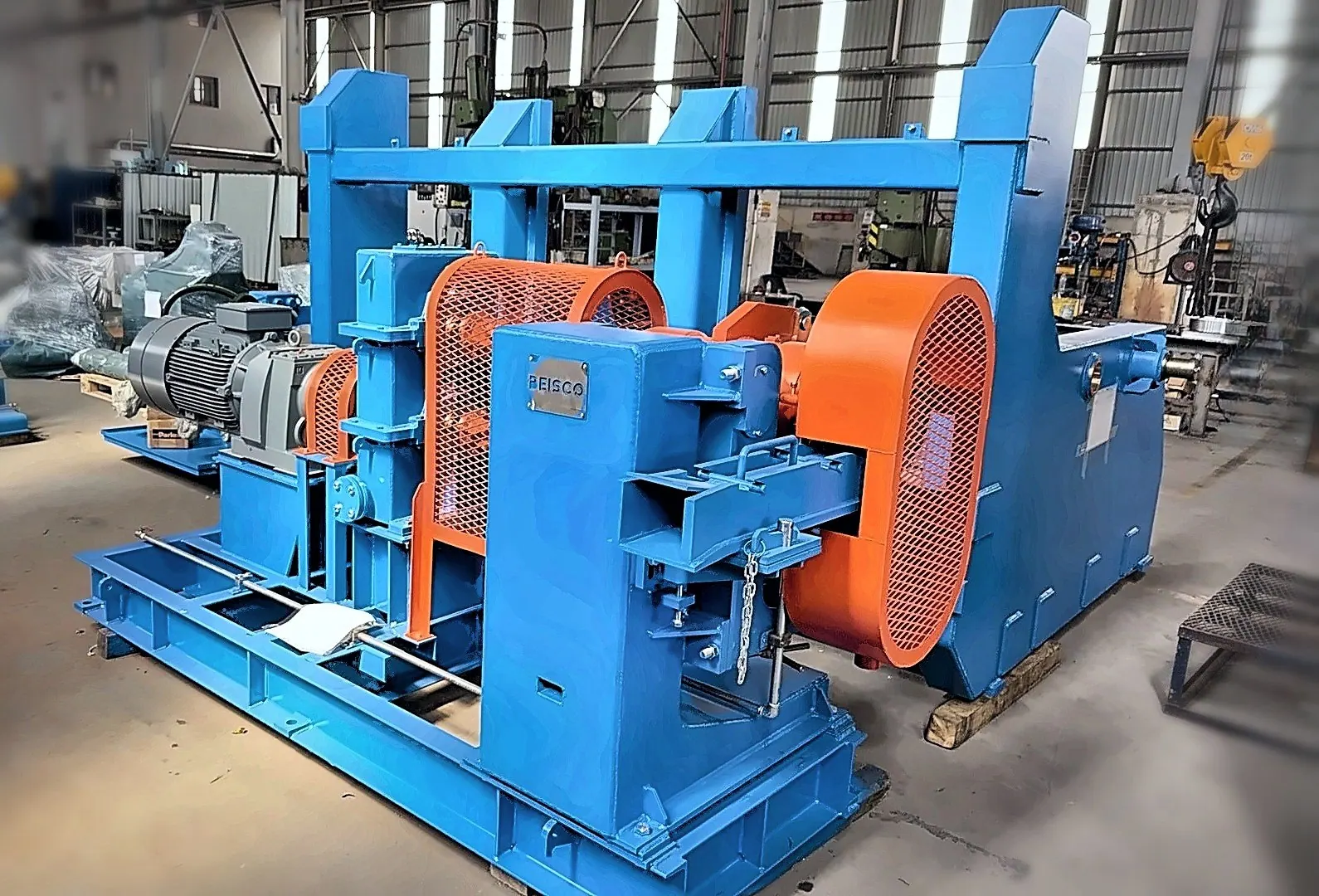

Pinch roll unit in the workshop

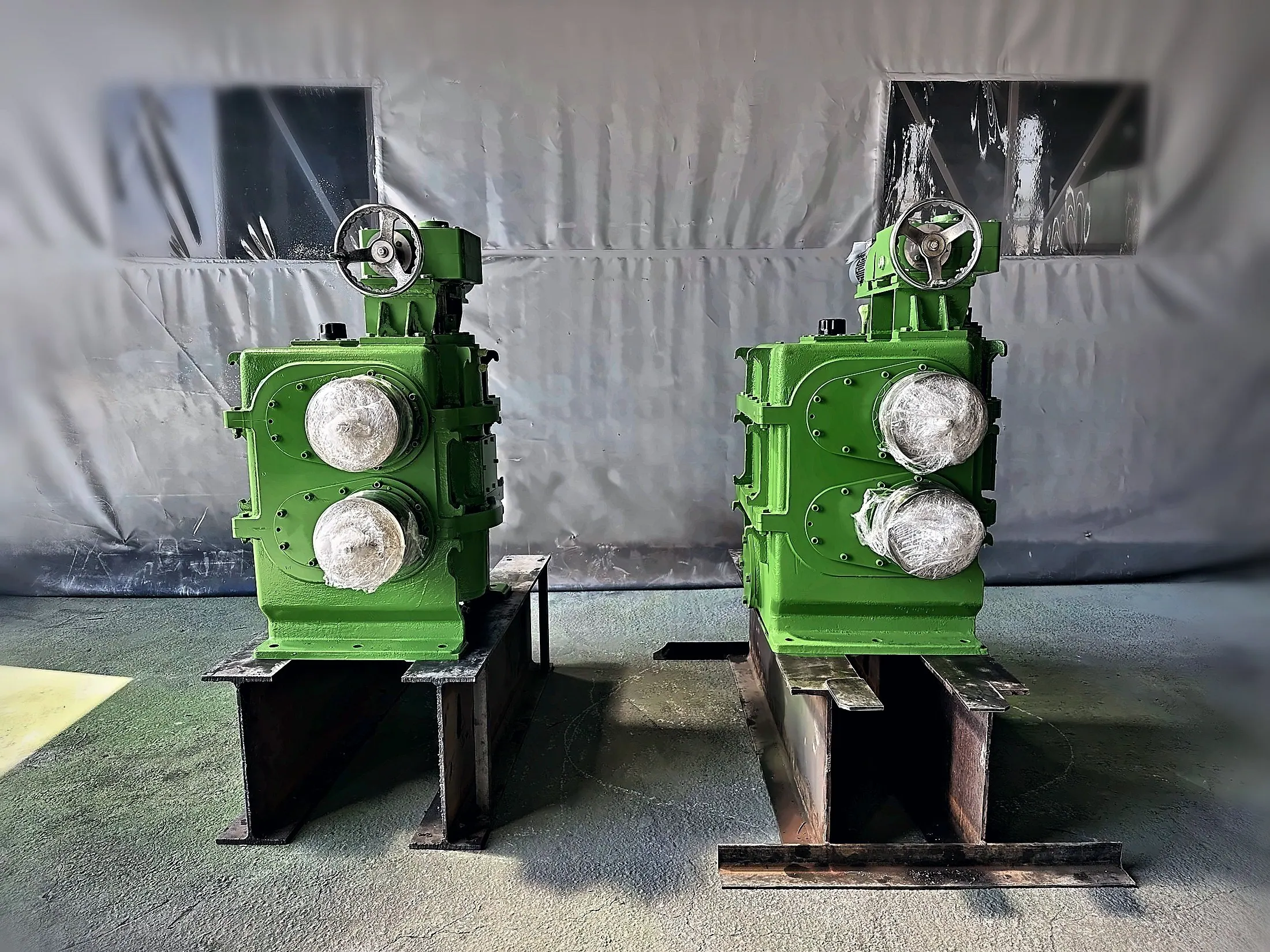

Two high-speed pinch rolls
