Rolling mill shears

Crop & cobble (flying & crank) · finishing (flying, crank & convertible) · cold shears

A moving bar. A fixed length. One chance to cut.

Most cuts in a rolling mill are made on steel in motion.

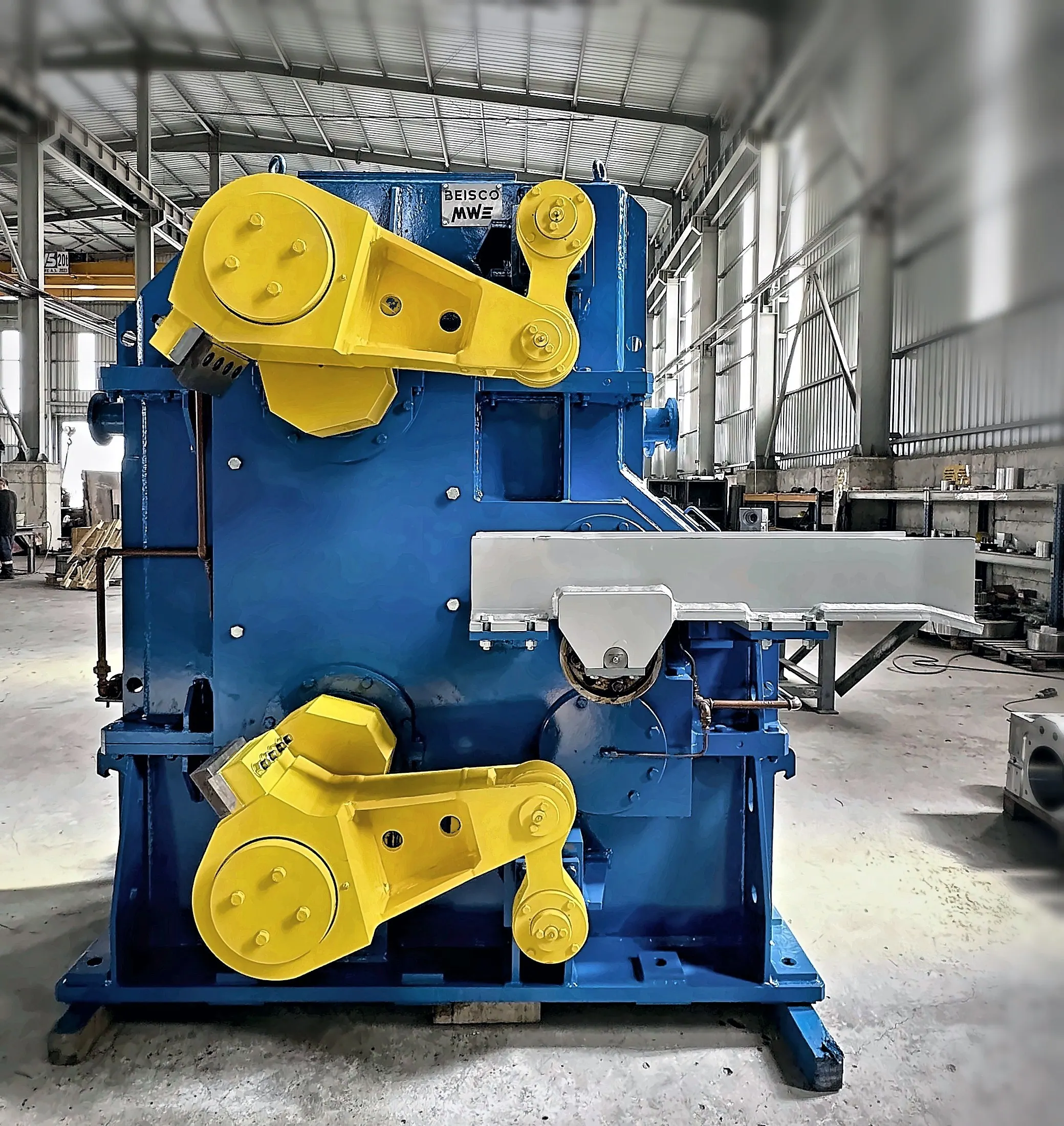

Rolling mill shear with yellow blade carriers

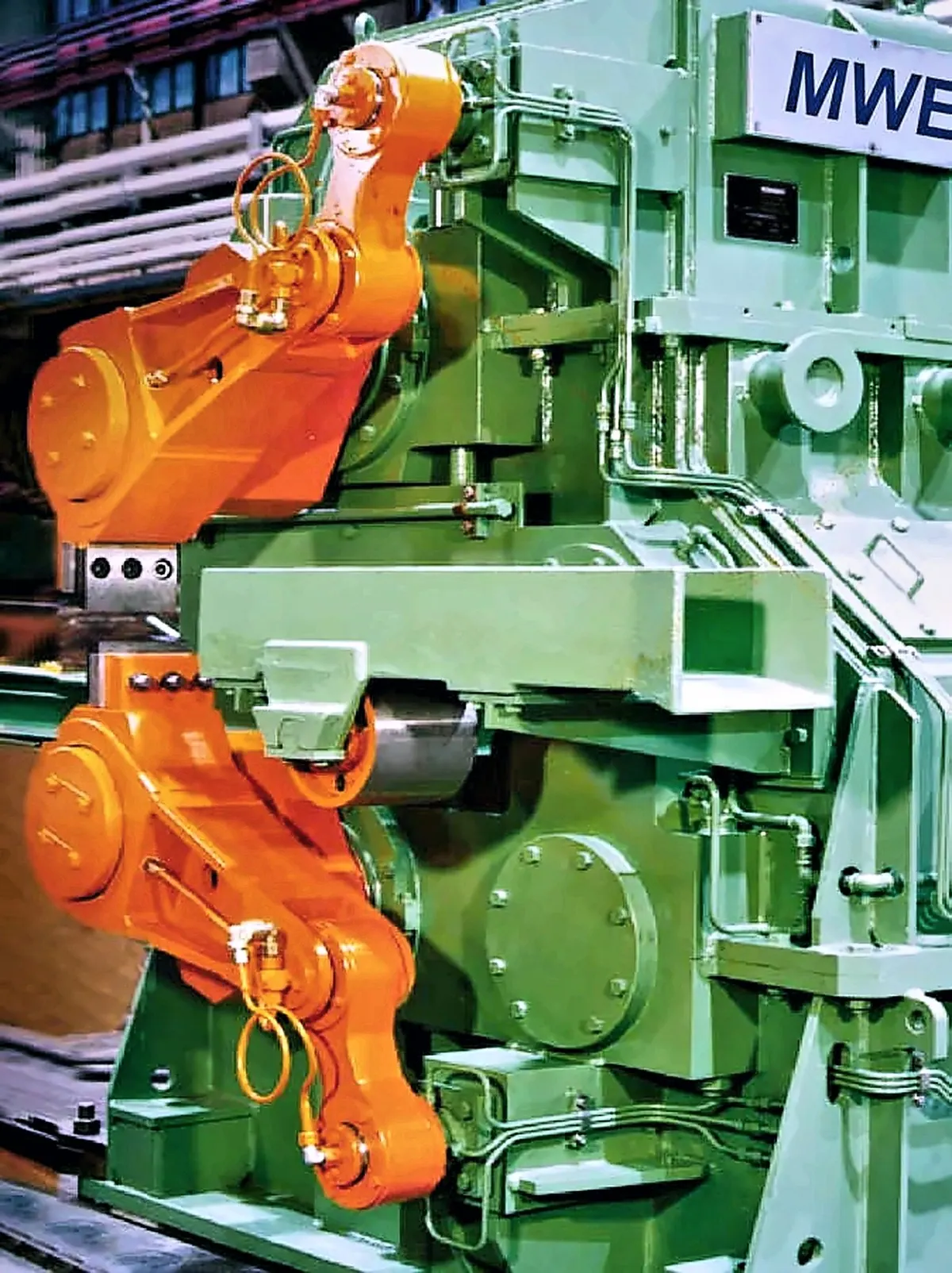

Rolling mill shear bearing the MWE nameplate

Crop the head, divide for the cooling bed, clear an emergency, cut cold bars to length: each cut has its own place in the line and its own timing.

Our crank, crank-lever and double-crank shears keep the blades close to perpendicular to the stock for a clean cut, and the blade carrier is configured to the job, including two blade tracks, so cropping and short emergency lengths run on one machine.

Key data
Crank lever shears360–1,250 kN
Crank shears, 1–2 blade tracks200–580 kN · up to 16 m/s
Double crank shears800–1,400 kN
Flying shearsup to 40 m/s

Tell us the bar sizes, the speed and where the cut has to be. We will propose the shear.

Or send it by e-mail: [email protected] · +90 232 616 06 66

Rolling mill request form

04 Rolling mill shears

How a rolling mill shear works

The blade meets the bar halfway.

The blade meets the bar halfway.v bar12345CRANK SHEAR AT THE MOMENT OF CUTSTANDSCROP & COBBLESTANDSDIVIDINGCOOLING BEDCOLD SHEAR
Schematic of a crank shear and of where shears cut in a bar mill. Not to scale.← Swipe to see the whole drawing →
  1. 1CrankTurns once per cut and drives the blade carrier.
  2. 2Blade carrierBrings the blade to the bar and away again.
  3. 3BladesMeet close to perpendicular to the stock for a clean cut.
  4. 4Bar in motionKeeps moving while it is cut.
  5. 5DriveStarts, cuts and stops the shear for every single cut.

Field note

Arriving early is as bad as arriving late. The blade has to meet the bar at the bar's own speed.

04 Rolling mill shears

Photographs

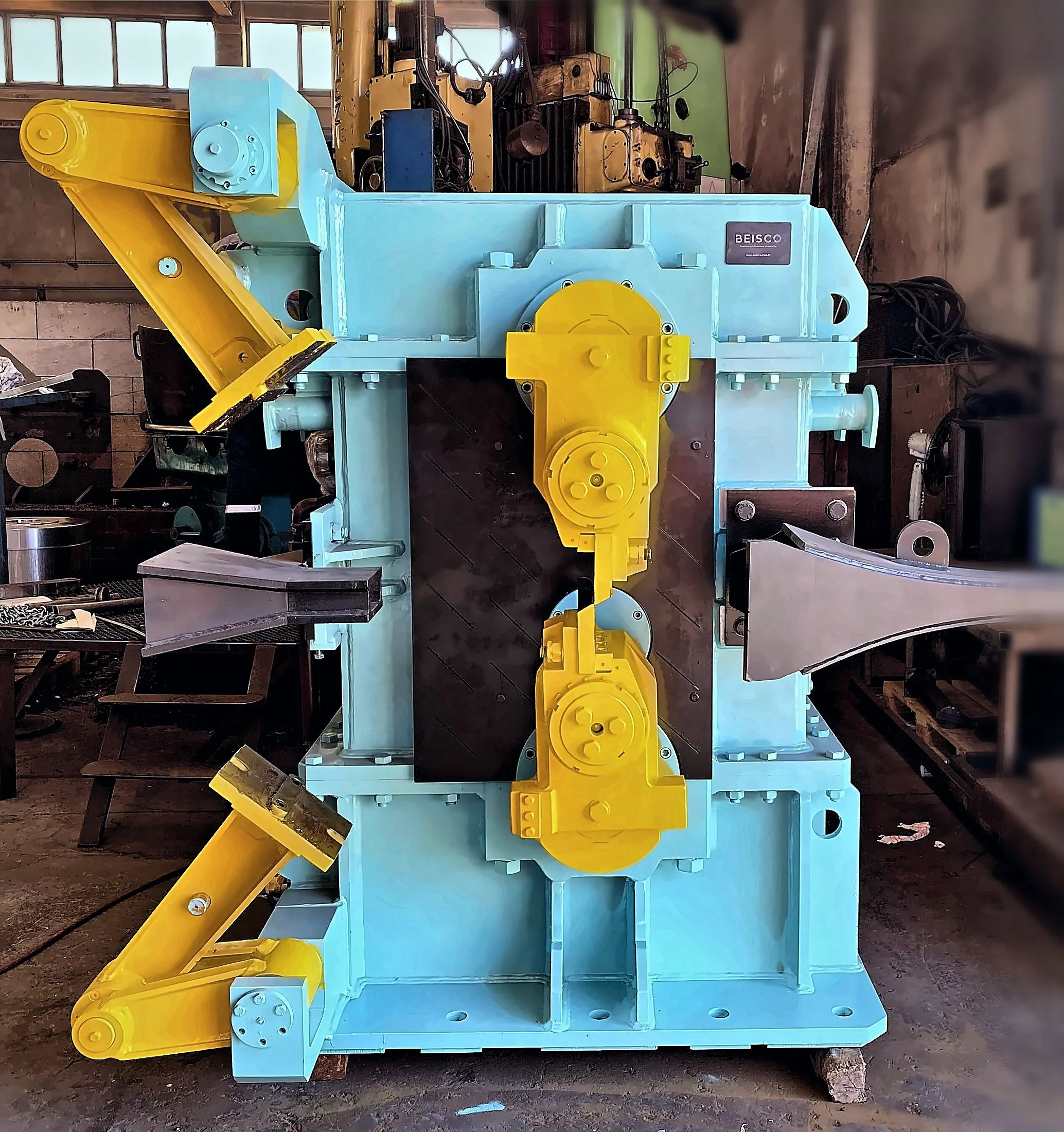

Rolling mill shear in the workshop
Rolling mill shear in the workshop, blade carriers visible

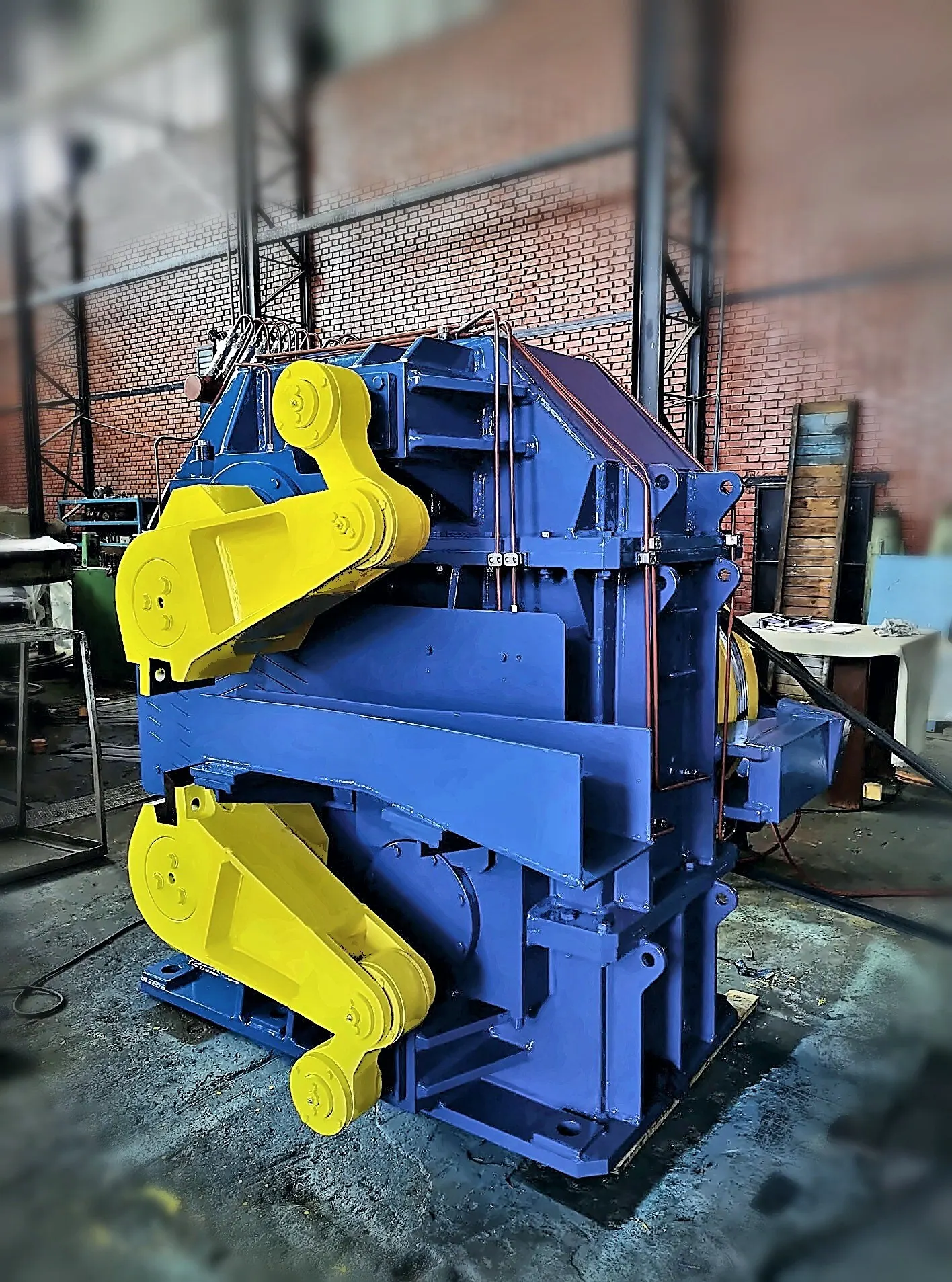

Rolling mill shear, side view

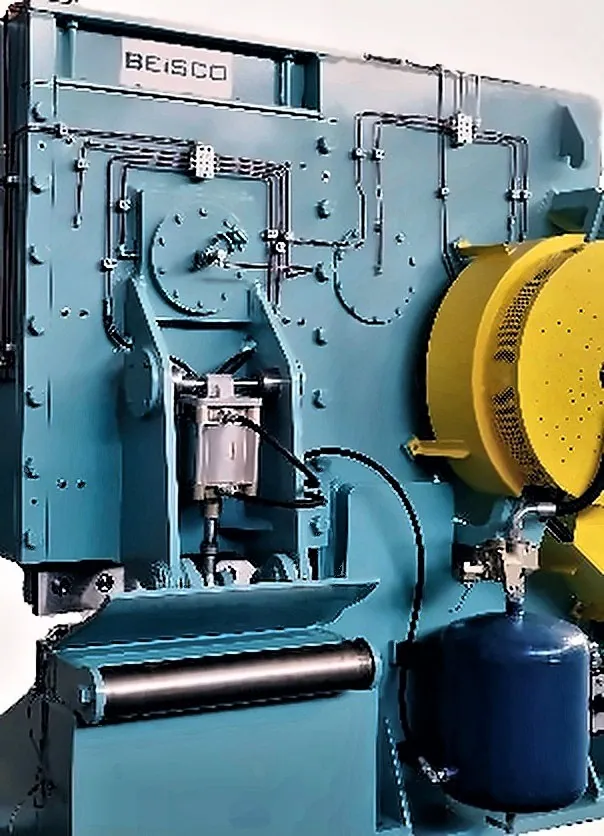

Rolling mill shear with BEISCO nameplate

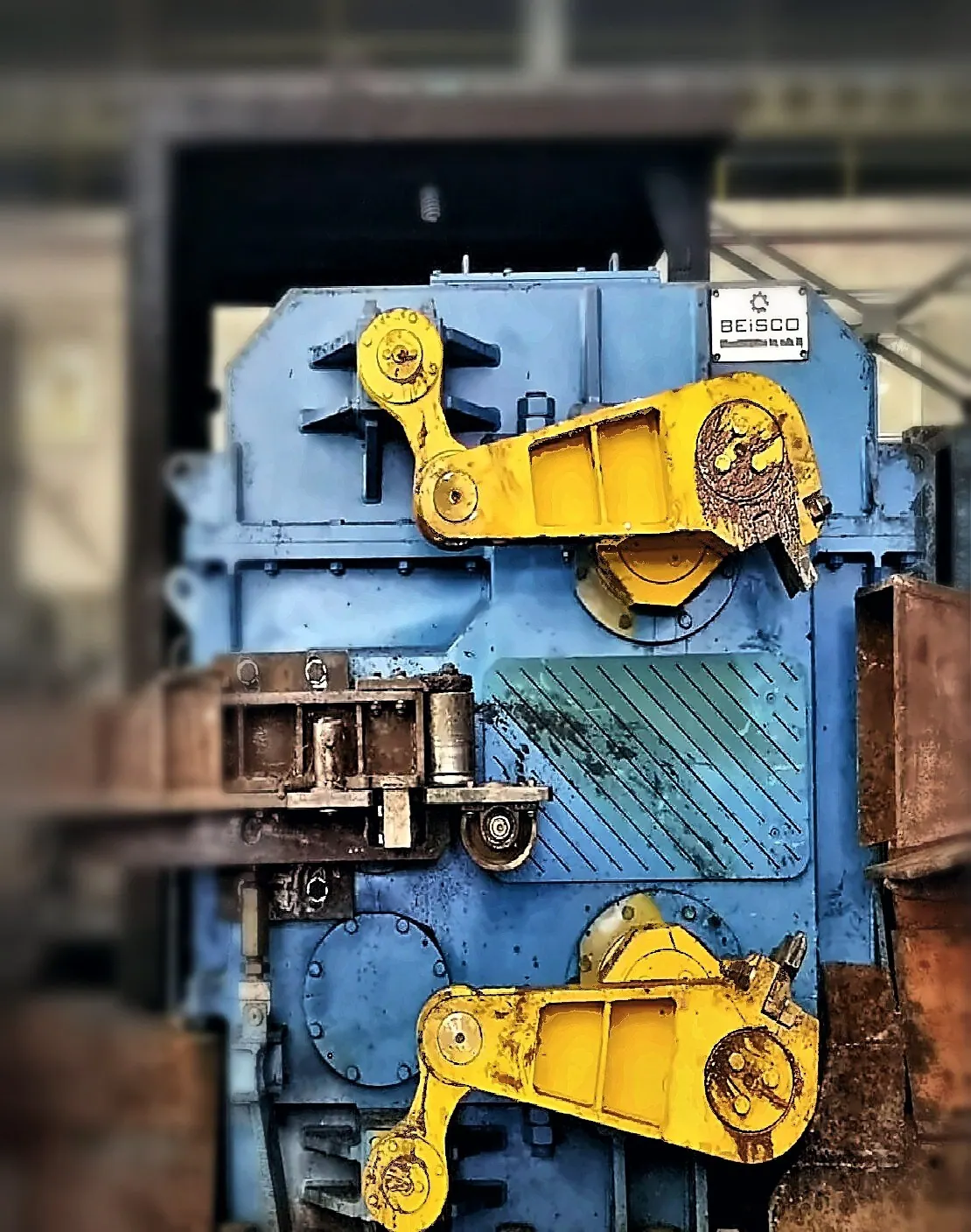

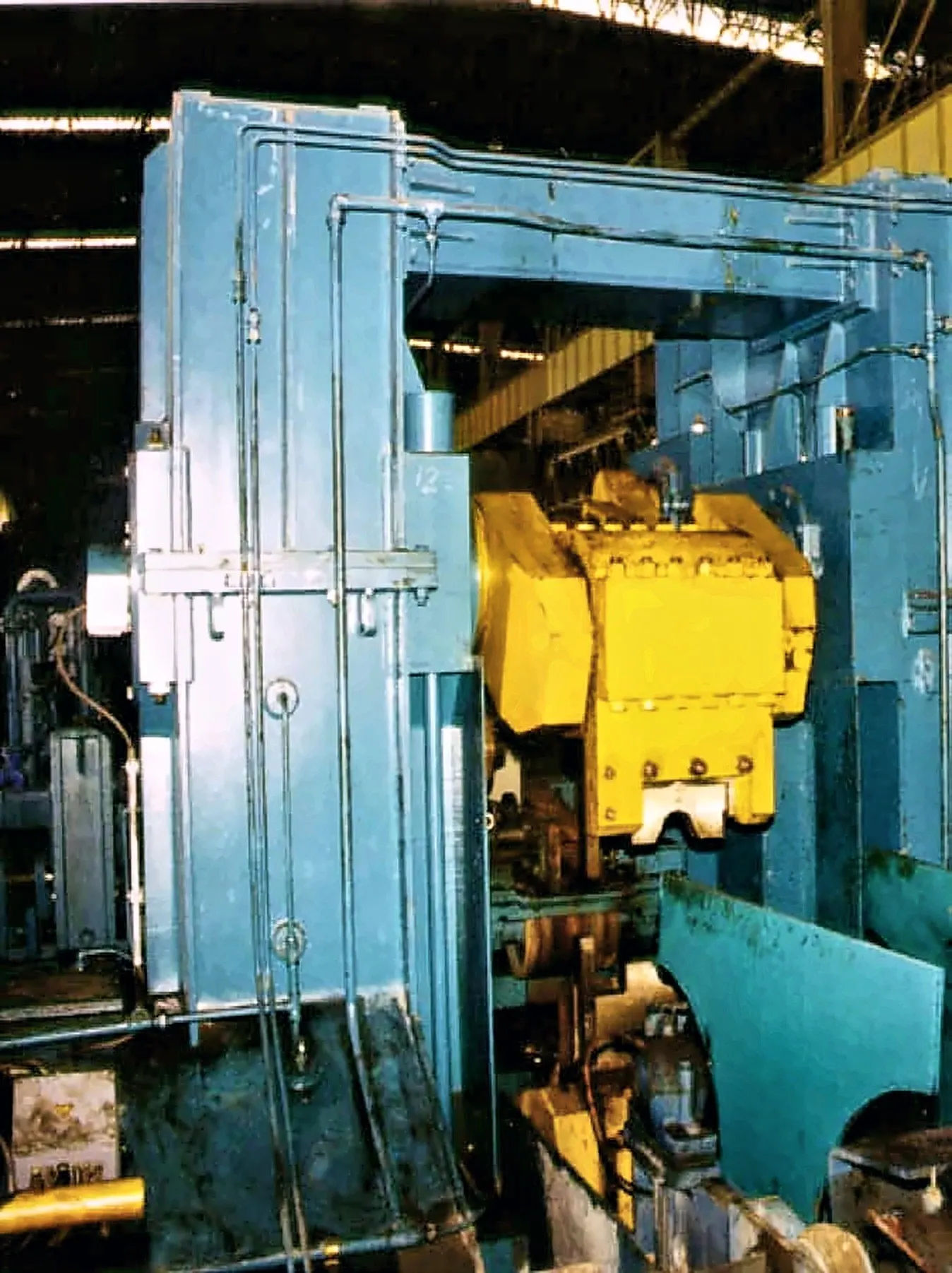

Rolling mill shear installed in the line

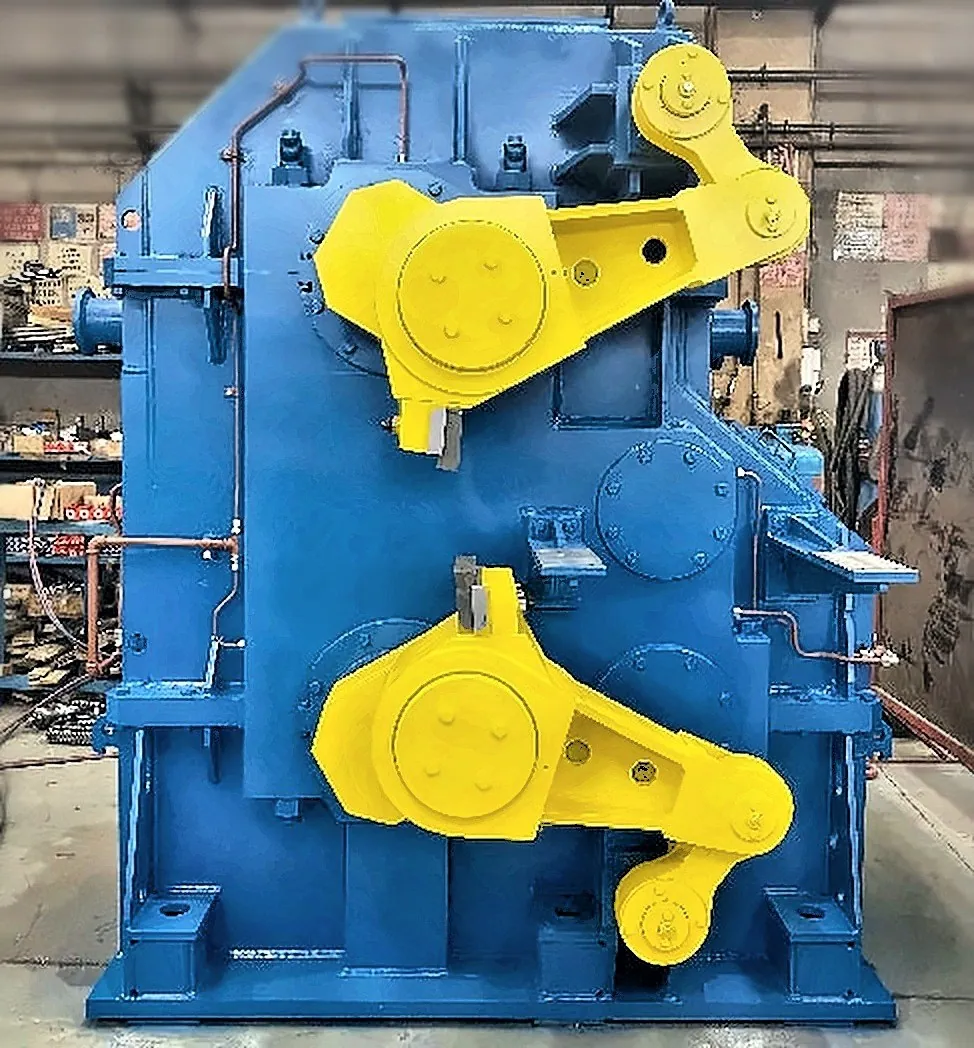

Rolling mill shear, front view
Close-up of a rolling mill shear's blade carriers
Rolling mill shear with BEISCO nameplate, side view
Rolling mill shear in the workshop
Rolling mill shear in the workshop, blade carriers visible
Rolling mill shear, side view
Rolling mill shear with BEISCO nameplate
Rolling mill shear installed in the line
Rolling mill shear, front view
Close-up of a rolling mill shear's blade carriers
Rolling mill shear with BEISCO nameplate, side view

04 Rolling mill shears

Where it sits in the rolling mill line

A rolling mill, end to end.12 Meltshop mechanical equipment12MELTSHOP12 Meltshop mechanical equipment12CASTING01 Reheating furnace area01FURNACE03 Rolling mill stands0305 Rolling mill guides05ROUGHING04 Rolling mill shears04CROP SHEAR03 Rolling mill stands0305 Rolling mill guides05INTERMEDIATE03 Rolling mill stands0305 Rolling mill guides05FINISHINGBAR ROUTE08 Cooling systems08QUENCHING04 Rolling mill shears04DIVIDING07 Pinch rolls07PINCH ROLLS10 Cooling beds10COOLING BED04 Rolling mill shears04COLD SHEAR11 Finishing shop11FINISHING AREABAR-IN-COIL ROUTE09 Wire rod mill equipment09BLOCK08 Cooling systems08COOLING09 Wire rod mill equipment09SPOOLER05 Guides: at every standOFF THE LINE06 Gearboxes06GEARBOXES02 Industrial furnaces02INDUSTRIAL FURNACES

Schematic, not to scale. Numbers: product chapters.← Swipe to see the whole drawing →

  1. 01 Reheating furnace & furnace area mechanical equipment
  2. 02 Industrial furnaces
  3. 03 Rolling mill stands
  4. 04 Rolling mill shears
  5. 05 Rolling mill guides
  6. 06 Gearboxes
  7. 07 Pinch rolls
  8. 08 Cooling systems
  9. 09 Wire rod mill equipment
  10. 10 Cooling beds
  11. 11 Straightening machines
  12. 12 Meltshop mechanical equipment
